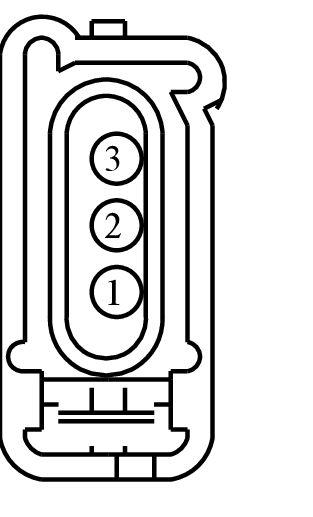

Connector End View (C1043) - FRONT PARK/TURN LAMP RH

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1043	FRONT PARK/TURN LAMP RH	BN	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD129 (BK-YE)	22	GROUND - HEADLAMP PANEL/GOR LEFT	97BG-14474-ADA
2	CLS05 (BU-GY)	22	CTRL MOD. - PARK	97BG-14474-ADA
3	CLS25 (YE-VT)	22	CTRL MOD. - TURN LAMP RIGHT FRONT	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1167

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FHAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Front Cornering/Turn
Lamp - Front Park
Lamp - Front Turn
Lamp - Front Turn/ Marker
Lamp - Headlamp - High/Low Beam
Lamp - Park/Turn
Lamp - Park/Turn/Stop
Lamp - Rear Park
Lamp - Reverse
Lamp - Stop
