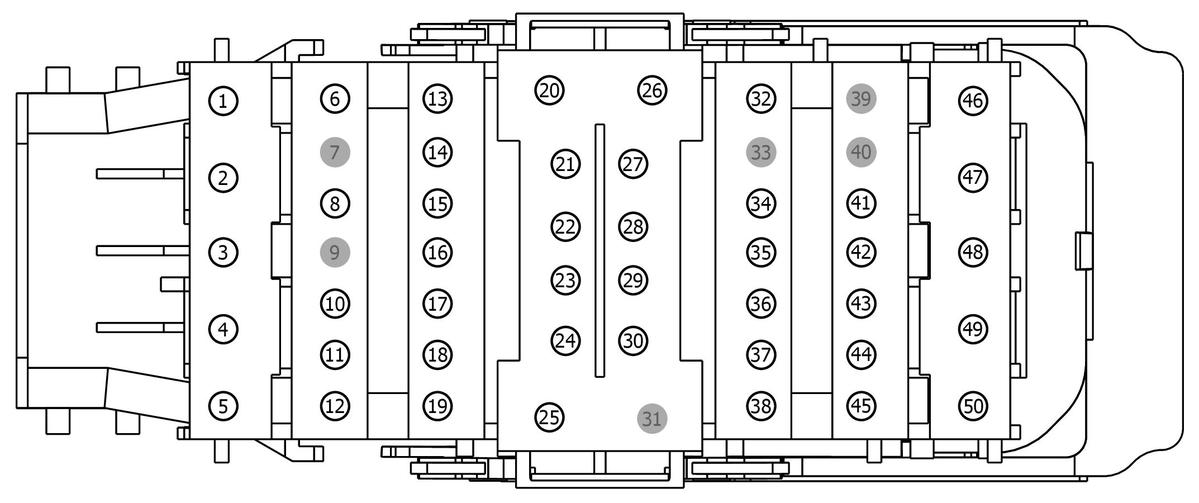

Connector End View (C1035B) - BATTERY JUNCTION BOX (BJB)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035B	BATTERY JUNCTION BOX (BJB)	BK	12A581	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-JBB	Not Available
*YF1T-14474-CA	Not Available
DU5T-14474-HBB	Not Available
DU5T-14474-HBB\|DU5T-14474-JBB\|*DU5T-14474-JBB	Not Available
*F8VB-14474-BA	Not Available
DU5T-14474-HBB\|DU5T-14474-JBB	Not Available
DU5T-14474-LBB\|DU5T-14474-JBB	Not Available
DU5T-14474-LBB\|*EU5T-14474-FA	Not Available
DU5T-14474-UBB\|DU5T-14474-RBB	Not Available
DU5T-14474-NBB	Not Available
DU5T-14474-LBB	EU2Z-14474-AB	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRH01 (YE-RD)	18	RELAY - HORN	DU5T-14474-JBB
2	CEC05 (VT-GY)	10	RELAY - ENGINE COOLING FAN	DU5T-14474-UBB
3	CRW03 (VT-WH)	16	RELAY - FRONT WIPER	DU5T-14474-JBB
4	SBB04 (GN-RD)	10	FUSE - 4 OR CIRCUIT BREAKER	DU5T-14474-UBB
5	CDC25 (BN-GN)	14	RELAY - STARTER	DU5T-14474-LBB
6	CBB06 (WH-BU)	16	FUSE - 6 OR CIRCUIT BREAKER	DU5T-14474-JBB
7	*	*	Not Used	N/A
8	CBB08 (GY-YE)	16	FUSE - 8 OR CIRCUIT BREAKER	*YF1T-14474-CA
9	*	*	Not Used	N/A
10	CBB10 (YE-OG)	22	FUSE - 10 OR CIRCUIT BREAKER	DU5T-14474-HBB
11	CAT06 (YE)	16	CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT (COLOR TO SAE 1239)	DU5T-14474-JBB
12	CAT09 (GN)	16	CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT (COLOR TO SAE 1239)	DU5T-14474-JBB
12	CAC05 (YE)	16	RELAY - UPFITTER #1	DU5T-14474-JBB
13	CBB13 (GY-BN)	22	FUSE - 13 OR CIRCUIT BREAKER	DU5T-14474-HBB\|DU5T-14474-JBB\|*DU5T-14474-JBB
14	CBB14 (VT-OG)	20	FUSE - 14 OR CIRCUIT BREAKER	*F8VB-14474-BA
15	CBB15 (BN-BU)	22	FUSE - 15 OR CIRCUIT BREAKER	DU5T-14474-HBB
16	CBB16 (BU-GN)	22	FUSE - 16 OR CIRCUIT BREAKER	DU5T-14474-HBB\|DU5T-14474-JBB
17	CBB17 (BN-GN)	22	FUSE - 17 OR CIRCUIT BREAKER	DU5T-14474-HBB
18	CBB18 (GY-OG)	22	FUSE - 18 OR CIRCUIT BREAKER	DU5T-14474-HBB
19	CAC13 (BU-OG)	16	RELAY - UPFITTER #5	DU5T-14474-JBB
20	CH402 (YE-GN)	10	RELAY - FRONT BLOWER	DU5T-14474-UBB
21	SBB21 (GY-RD)	16	FUSE - 21 OR CIRCUIT BREAKER	DU5T-14474-JBB
22	SBB22 (BN-RD)	12	FUSE - 22 OR CIRCUIT BREAKER	DU5T-14474-LBB\|DU5T-14474-JBB
22	SBB22 (BN-RD)	16	FUSE - 22 OR CIRCUIT BREAKER	DU5T-14474-LBB\|DU5T-14474-JBB
23	SBB23 (WH-RD)	20	FUSE - 23 OR CIRCUIT BREAKER	DU5T-14474-JBB
24	SBB24 (VT-RD)	12	FUSE - 24 OR CIRCUIT BREAKER	DU5T-14474-LBB
25	SBB25 (RD)	12	FUSE - 25 OR CIRCUIT BREAKER	DU5T-14474-RBB
26	CEC07 (BN)	10	RELAY - ENGINE COOLING FAN HIGH SPEED	DU5T-14474-UBB
27	SBB27 (BU-RD)	16	FUSE - 27 OR CIRCUIT BREAKER	DU5T-14474-JBB
28	SBB28 (GN-RD)	20	FUSE - 28 OR CIRCUIT BREAKER	DU5T-14474-JBB
29	SBB29 (GY-RD)	12	FUSE - 29 OR CIRCUIT BREAKER	DU5T-14474-LBB
30	SBB30 (BN-RD)	16	FUSE - 30 OR CIRCUIT BREAKER	DU5T-14474-JBB
31	*	*	Not Used	N/A
32	CH401 (VT-WH)	22	RELAY - A/C CLUTCH	DU5T-14474-HBB
33	*	*	Not Used	N/A
34	CBK05 (YE)	22	FUSE - 34 OR CIRCUIT BREAKER (VPWR 5)	DU5T-14474-HBB
35	CBK04 (VT-RD)	16	FUSE - 35 OR CIRCUIT BREAKER (VPWR 4)	DU5T-14474-JBB
36	CBK03 (GY)	22	FUSE - 36 OR CIRCUIT BREAKER (VPWR 3)	DU5T-14474-HBB
37	CBK02 (GN)	14	FUSE - 37 OR CIRCUIT BREAKER (VPWR 2)	DU5T-14474-LBB\|*EU5T-14474-FA
37	CBK02 (GN)	22	FUSE - 37 OR CIRCUIT BREAKER (VPWR 2)	DU5T-14474-LBB\|*EU5T-14474-FA
37	CBK02 (GN)	16	FUSE - 37 OR CIRCUIT BREAKER (VPWR 2)	DU5T-14474-LBB\|*EU5T-14474-FA
38	CBB38 (GY-BU)	14	FUSE - 38 OR CIRCUIT BREAKER	DU5T-14474-LBB
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	SBB41 (RD)	14	FUSE - 41 OR CIRCUIT BREAKER	DU5T-14474-LBB
42	GD132 (BK-VT)	14	GROUND - HEADLAMP PANEL/GOR RIGHT # 2ND POINT	DU5T-14474-LBB
43	SBB43 (BU-RD)	16	FUSE - 43 OR CIRCUIT BREAKER	DU5T-14474-JBB
44	CPW68 (VT-OG)	14	CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # DOWN	DU5T-14474-LBB
45	CPW67 (BN)	14	CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # UP	DU5T-14474-LBB
46	CBB46 (WH-BU)	22	FUSE - 46 OR CIRCUIT BREAKER	DU5T-14474-HBB
47	GD131 (BK-GY)	10	GROUND - HEADLAMP PANEL/GOR RIGHT	DU5T-14474-UBB\|DU5T-14474-RBB
47	CHP07 (BN-VT)	12	RELAY - PTC HEATER BANK 3	DU5T-14474-UBB\|DU5T-14474-RBB
48	CBB48 (GY-YE)	12	FUSE - 48 OR CIRCUIT BREAKER	DU5T-14474-LBB
49	CEC06 (YE-OG)	10	RELAY - ENGINE COOLING FAN 2ND	DU5T-14474-UBB
50	CBK01 (BU)	10	FUSE - 50 OR CIRCUIT BREAKER (VPWR 1)	DU5T-14474-NBB
