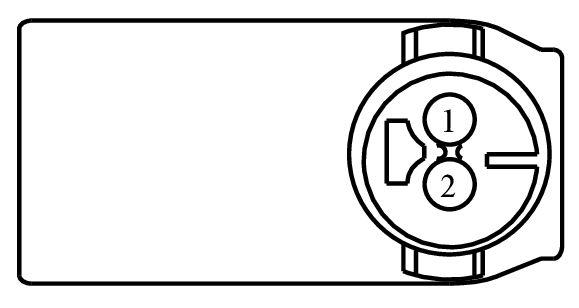

Connector End View (C303A) - PASSENGER SAFETY BELT RETRACTOR AND PRETENSIONER

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C303A	PASSENGER SAFETY BELT RETRACTOR AND PRETENSIONER	BK	14632/14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
P/O ASSEMBLY	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR179 (BU)	20	CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD +	P/O ASSEMBLY
2	RR179 (GY-BU)	20	CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD -	P/O ASSEMBLY

Available Pigtail Kits

Pigtail Kit Part Number WPT-1225

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BHA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses:

Airbag - Side Curtain
Pretensioner - Seat Belt (Driver)
Pretensioner - Seat Belt (Passenger)
Sensor - Side Impact
Squib - Airbag (Driver)
Squib - Airbag (Passenger)
