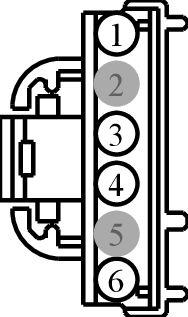

Connector End View (C301) - ALTERNATING CURRENT (AC) POWER OUTLET SOCKET 2

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C301	ALTERNATING CURRENT (AC) POWER OUTLET SOCKET 2	BK	14B079	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	9U5T-14474-MA
2	*	*	Not Used	N/A
3	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	3F2T-14474-SA
4	LYA18 (GN-WH)	22	CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR +	3F2T-14474-SA
5	*	*	Not Used	N/A
6	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	9U5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1006

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-NB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Dimmer Switch
Module - Front Interface
Switch - Adjustable Pedal
Switch - Dimmer
Switch - Dimmer (Instrument Panel)
Switch - Message Center
Switch - Power Window - Passenger (Front)
