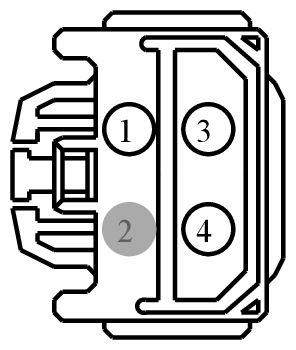

Connector End View (C297) - BLOWER MOTOR CONTROL MODULE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C297 | BLOWER MOTOR CONTROL MODULE | LT GY | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-CCA | JU2Z-14474-AB | 6.3 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD132 (BK-VT) | 10 | GROUND - HEADLAMP PANEL/GOR RIGHT # 2ND POINT | 97BG-14474-CCA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CH402 (YE-GN) | 10 | RELAY - FRONT BLOWER | 97BG-14474-CCA | ||||
| 4 | VH101 (WH-VT) | 20 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | 97BG-14474-CAA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1177
Service Part Number:
AU2Z-14S411-BHA
Gauge:
10
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-1408
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
