Connector End View (C260) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C260 | INLINE | BK | 14G60214401 | See Below | ||||

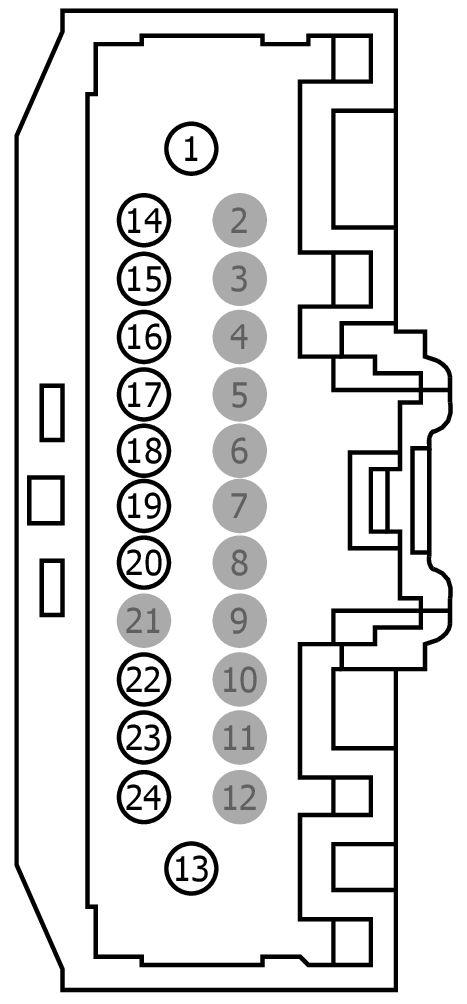

MALE
Harness
14G602

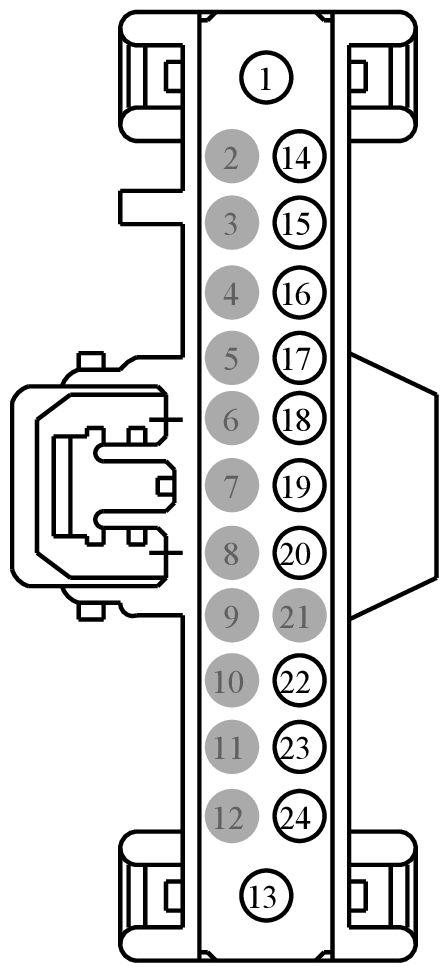

FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| 3M5T-14474-HAA | DU2Z-14474-EA | 2.8 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD215 (BK-GY) | 22 | N/A | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
| 5 | * | * | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
| 13 | SBP15 (WH-RD) | 22 | N/A | |||
| 14 | GD216 (BK-VT) | 22 | DU5T-14421-FA | |||
| 15 | VDB30 (WH-GN) | 22 | DU5T-14421-FA | |||
| 16 | VDB29 (GN-BU) | 22 | DU5T-14421-FA | |||
| 17 | VDB26 (GY-BU) | 22 | DU5T-14421-FA | |||
| 18 | VDB25 (GN-OG) | 22 | DU5T-14421-FA | |||
| 19 | VDB05 (WH) | 22 | DU5T-14421-FA | |||
| 20 | VDB04 (BU) | 22 | DU5T-14421-FA | |||
| 21 | * | * | N/A | |||
| 22 | VDB07 (VT-OG) | 22 | DU5T-14421-FA | |||
| 23 | VDB06 (GY-OG) | 22 | DU5T-14421-FA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD215 (BK-GY) | 22 | 3M5T-14474-HAA | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
| 5 | * | * | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
| 13 | SBP15 (WH-RD) | 22 | 3M5T-14474-HAA | |||
| 14 | GD216 (BK-VT) | 22 | 8U5T-14474-BB | |||
| 15 | VDB30 (WH-GN) | 22 | 8U5T-14474-BB | |||
| 16 | VDB29 (GN-BU) | 22 | 8U5T-14474-BB | |||
| 17 | VDB26 (GY-BU) | 22 | 8U5T-14474-BB | |||
| 18 | VDB25 (GN-OG) | 22 | 8U5T-14474-BB | |||
| 19 | VDB05 (WH) | 22 | 8U5T-14474-BB | |||
| 20 | VDB04 (BU) | 22 | 8U5T-14474-BB | |||
| 21 | * | * | N/A | |||
| 22 | VDB07 (VT-OG) | 22 | 8U5T-14474-BB | |||
| 23 | VDB06 (GY-OG) | 22 | 8U5T-14474-BB | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1533
Service Part Number:
FU2Z-14S411-ALB
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
24
Vehicle Uses:
- DVD Player
- Module - Audio Control
- Module - Body Control
- Module - Fuel and Damper Control
- Module - Gateway
- Radio
- Test Connector - Diagnostic
Pigtail Kit Part Number WPT-1440
Service Part Number:
FU2Z-14S411-ALA
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
24
Vehicle Uses:
- DVD Player
- Module - Audio Control
- Module - Body Control
- Module Gateway
- Radio
- Test Connector - Diagnostic
