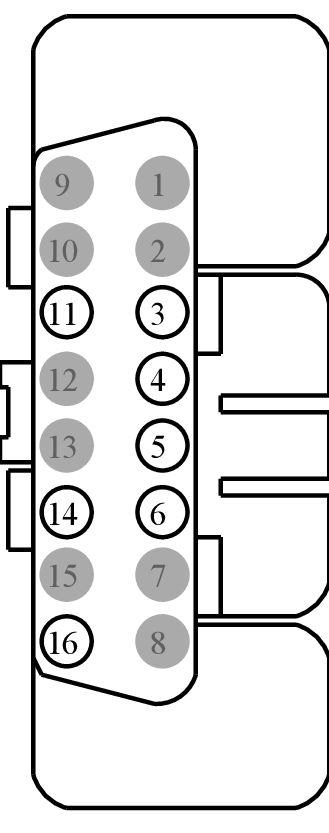

Connector End View (C251) - DATA LINK CONNECTOR (DLC)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C251 |
DATA LINK CONNECTOR (DLC) |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* (*) |
* |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
N/A |
| 4 |
* (*) |
* |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
N/A |
| 5 |
* (*) |
* |
GROUND - INSTRUMENT PANEL STRUCTURE |
N/A |
| 6 |
* (*) |
* |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* (*) |
* |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* (*) |
* |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* (*) |
* |
FUSE - 15 OR CIRCUIT BREAKER |
N/A |
