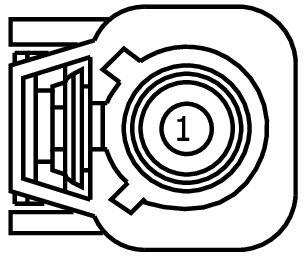

Connector End View (C240D) - AUDIO CONTROL MODULE (ACM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C240D |
AUDIO CONTROL MODULE (ACM) |
18812 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
COAX (*) |
* |
AM / FM1 ANTENNA |
N/A |
