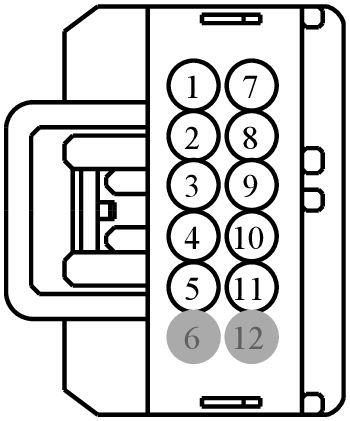

Connector End View (C226) - STEERING COLUMN CONTROL MODULE (SCCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226	STEERING COLUMN CONTROL MODULE (SCCM)	NA	14401/14C210	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	3F2T-14474-SA
2	CRW15 (BN-WH)	22	CTRL MOD. - FRONT WIPER HIGH	3F2T-14474-SA
3	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	3F2T-14474-SA
4	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	3F2T-14474-SA
5	GD215 (BK-GY)	22	GROUND	3F2T-14474-SA
6	*	*	Not Used	N/A
7	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER	3F2T-14474-SA
7	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER	9U5T-14474-LA
8	VX107 (YE-GY)	22	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE	3F2T-14474-SA
8	VDN05 (YE-GY)	22	CTRL MOD. - LIN BUS # BCM 5	3F2T-14474-SA
9	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	9U5T-14474-LA
10	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	9U5T-14474-LA
11	RE407 (YE-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	9U5T-14474-LA
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-930

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-DA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Climate Control Seat
Module - Heated Seat (Rear)
