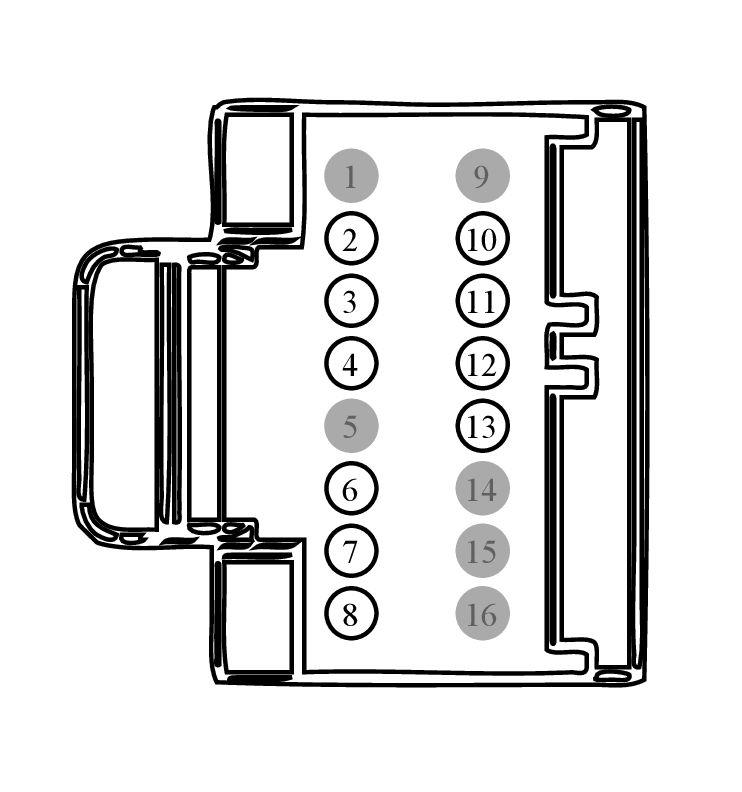

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220	INSTRUMENT PANEL CLUSTER (IPC)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
FU5T-14474-LB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	RMC32 (GN-BU)	22	CTRL MOD. - SENSOR FUEL LEVEL	9U5T-14474-DB
3	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-DB
4	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT	9U5T-14474-DB
5	*	*	Not Used	N/A
6	CCA15 (YE)	22	SWITCH - IVD/TCS DISABLE	9U5T-14474-DB
7	CET59 (GY)	22	SWITCH - HILL DESCENT CONTROL	9U5T-14474-DB
7	CET57 (GY-BN)	22	SWITCH - TRAIL CONTROL	9U5T-14474-DB
8	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER	FU5T-14474-LB
9	*	*	Not Used	N/A
10	VMC11 (YE-VT)	22	SENSOR - FUEL LEVEL (FLI)	9U5T-14474-DB
11	CMC20 (VT)	22	SWITCH - LOW LEVEL WASHER FLUID	9U5T-14474-DB
12	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	FU5T-14474-LB
13	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	FU5T-14474-LB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Instrument Cluster
Module - Seat Memory
Module - Upfitter Interface
Radio - Amplifier
