Connector End View (C219) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C219 | INLINE | BK | 1440114C210 | See Below | ||||

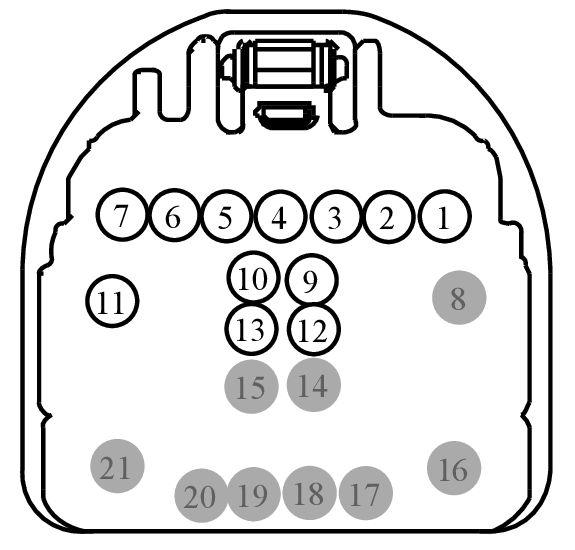

MALE
Harness
14401

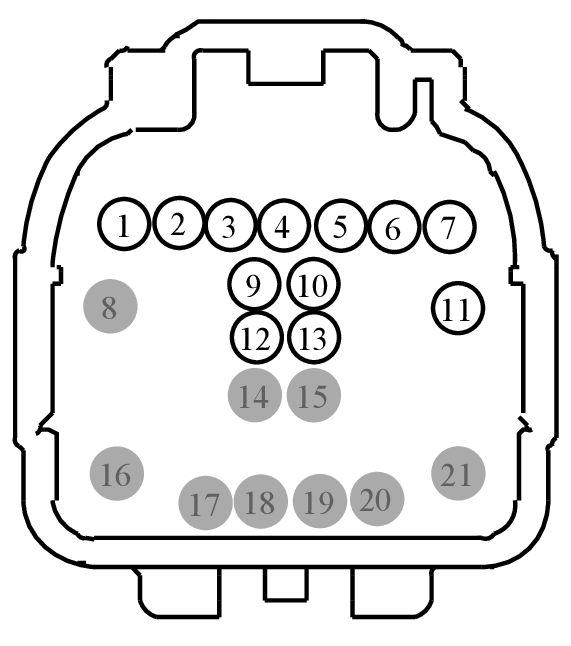

FEMALE
Harness
14C210
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AAB | Not Available | |
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| 8U5T-14474-BA | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBP35 (YE-GY) | 22 | DU5T-14421-FA | |||
| 2 | CET34 (BN-GN) | 22 | DU5T-14421-FA | |||
| 3 | CET43 (GY) | 22 | DU5T-14421-FA | |||
| 4 | CET42 (GN-VT) | 22 | DU5T-14421-FA | |||
| 5 | RE407 (YE-VT) | 22 | DU5T-14421-FA | |||
| 6 | SBP13 (GY-RD) | 22 | DU5T-14421-FA | |||
| 7 | GD215 (BK-GY) | 22 | DU5T-14421-FA | |||
| 8 | * | * | N/A | |||
| 9 | RRH02 (GN-WH) | 22 | DU5T-14421-FA | |||
| 10 | VX107 (YE-GY) | 22 | DU5T-14421-FA | |||
| 11 | CRW15 (BN-WH) | 22 | 97BG-14421-AAB | |||
| 12 | VDB25 (GN-OG) | 22 | DU5T-14421-FA | |||
| 13 | VDB26 (GY-BU) | 22 | DU5T-14421-FA | |||
| 14 | * | * | N/A | |||
| 15 | * | * | N/A | |||
| 16 | * | * | N/A | |||
| 17 | * | * | N/A | |||
| 18 | * | * | N/A | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBP19 (BN-WH) | 22 | 8U5T-14474-BA | |||
| 2 | CET34 (BN-GN) | 22 | 8U5T-14474-BA | |||
| 3 | CET43 (GY) | 22 | 8U5T-14474-BA | |||
| 4 | CET42 (GN-VT) | 22 | 8U5T-14474-BA | |||
| 5 | RE407 (YE-VT) | 22 | 8U5T-14474-BA | |||
| 6 | SBP13 (GY-RD) | 22 | 8U5T-14474-BA | |||
| 7 | GD215 (BK-GY) | 22 | 8U5T-14474-BA | |||
| 8 | * | * | N/A | |||
| 9 | RRH02 (GN-WH) | 22 | 8U5T-14474-BA | |||
| 10 | VDN05 (YE-GY) | 22 | 8U5T-14474-BA | |||
| 11 | CRW15 (BN-WH) | 22 | BU5T-14474-UA | |||
| 12 | VDB25 (GN-OG) | 22 | 8U5T-14474-BA | |||
| 13 | VDB26 (GY-BU) | 22 | 8U5T-14474-BA | |||
| 14 | * | * | N/A | |||
| 15 | * | * | N/A | |||
| 16 | * | * | N/A | |||
| 17 | * | * | N/A | |||
| 18 | * | * | N/A | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1561
Service Part Number:
JU2Z-14S411-ARA
Gauge:
14 16 20
Pin material:
Tin
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
