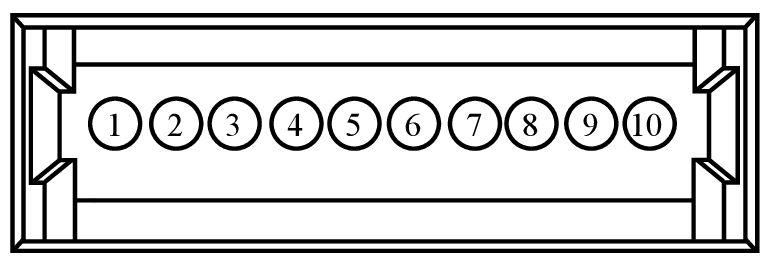

Connector End View (C218D) - CLOCKSPRING
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C218D |
CLOCKSPRING |
PIA |
14A644 |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* (*) |
* |
SWITCH - HORN |
N/A |
| 2 |
* (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
N/A |
| 3 |
* (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
N/A |
| 4 |
* (*) |
* |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
N/A |
| 5 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3 |
N/A |
| 6 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1 |
N/A |
| 7 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4 |
N/A |
| 8 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2 |
N/A |
| 9 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT) |
N/A |
| 10 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT) |
N/A |
