Connector End View (C215) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C215 | INLINE | GY | 1440114B079 | Not Available | ||||

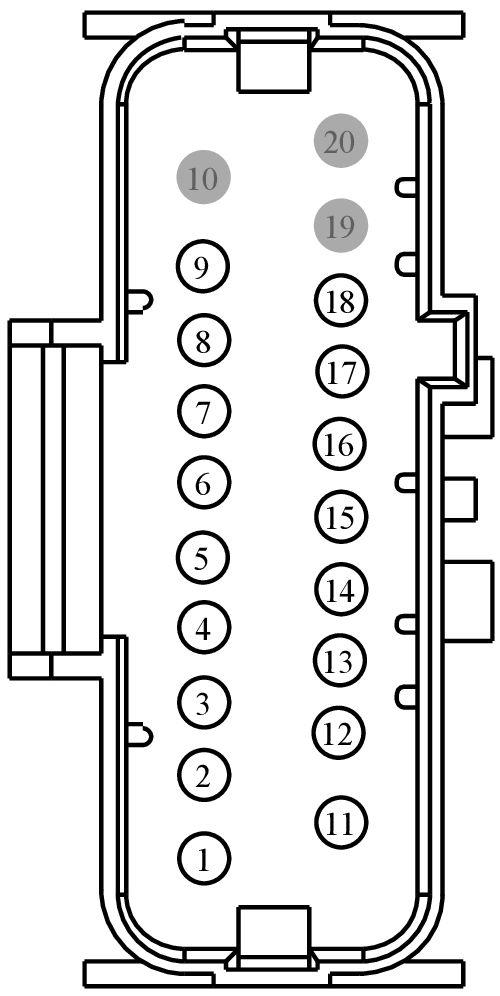

MALE
Harness
14401

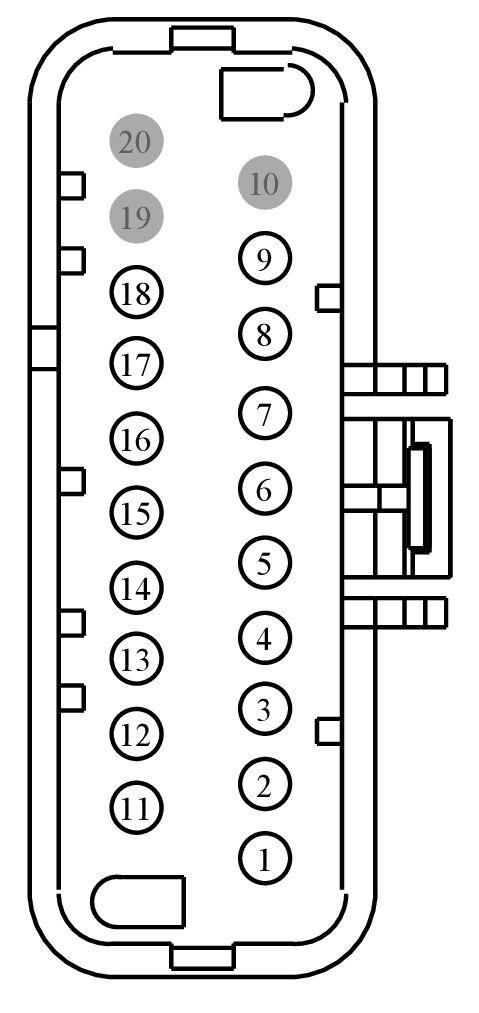

FEMALE
Harness
14B079
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA|7C3T-14474-DA | Not Available | |
| DU5T-14474-JAB | Not Available | |
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| 97BG-14421-BAA | EU2Z-14421-EA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CET34 (BN-GN) | 22 | BU5T-14421-HA | |||
| 2 | CET42 (GN-VT) | 22 | BU5T-14421-HA | |||
| 3 | CET52 (GN) | 22 | BU5T-14421-HA | |||
| 4 | CET43 (GY) | 22 | BU5T-14421-HA | |||
| 5 | RE407 (YE-VT) | 22 | BU5T-14421-HA | |||
| 6 | RME89 (WH-BU) | 22 | BU5T-14421-HA | |||
| 7 | LME89 (YE-BU) | 22 | BU5T-14421-HA | |||
| 8 | VPK07 (BU-GY) | 22 | BU5T-14421-HA | |||
| 9 | RPK07 (GN-OG) | 22 | BU5T-14421-HA | |||
| 10 | * | * | N/A | |||
| 11 | CDC41 (WH-BN) | 22 | 97BG-14421-BAA | |||
| 12 | CET53 (BU-OG) | 22 | BU5T-14421-HA | |||
| 13 | GD214 (BK-BU) | 22 | BU5T-14421-HA | |||
| 14 | CDC74 (BU-GN) | 22 | BU5T-14421-HA | |||
| 15 | CMP32 (GN) | 22 | BU5T-14421-HA | |||
| 16 | VLN73 (GY-BN) | 22 | BU5T-14421-HA | |||
| 17 | VLN04 (VT-GY) | 22 | BU5T-14421-HA | |||
| 18 | CBP35 (YE-GY) | 22 | BU5T-14421-HA | |||
| 19 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CET34 (BN-GN) | 22 | BU5T-14474-UA | |||
| 2 | CET42 (GN-VT) | 22 | BU5T-14474-UA | |||
| 3 | CET52 (GN) | 22 | BU5T-14474-UA | |||
| 4 | CET43 (GY) | 22 | BU5T-14474-UA | |||
| 5 | RE407 (YE-VT) | 22 | BU5T-14474-UA | |||
| 6 | RME89 (WH-BU) | 22 | BU5T-14474-UA | |||
| 7 | LME89 (YE-BU) | 22 | BU5T-14474-UA | |||
| 8 | VPK07 (BU-GY) | 20 | BU5T-14474-UA | |||
| 9 | RPK07 (GN-OG) | 20 | BU5T-14474-UA | |||
| 10 | * | * | N/A | |||
| 11 | CDC41 (WH-BN) | 22 | DU5T-14474-JAB | |||
| 12 | CET53 (BU-OG) | 22 | BU5T-14474-UA | |||
| 13 | GD214 (BK-BU) | 22 | BU5T-14474-UA|7C3T-14474-DA | |||
| 14 | CDC74 (BU-GN) | 22 | BU5T-14474-UA | |||
| 15 | CMP32 (GN) | 22 | BU5T-14474-UA | |||
| 16 | VLN73 (GY-BN) | 22 | BU5T-14474-UA | |||
| 17 | VLN04 (VT-GY) | 22 | BU5T-14474-UA|7C3T-14474-DA | |||
| 18 | CBP35 (YE-GY) | 22 | BU5T-14474-UA | |||
| 19 | * | * | N/A | |||
