Connector End View (C214) - INLINE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C214	INLINE	BK	PIA14401	See Below

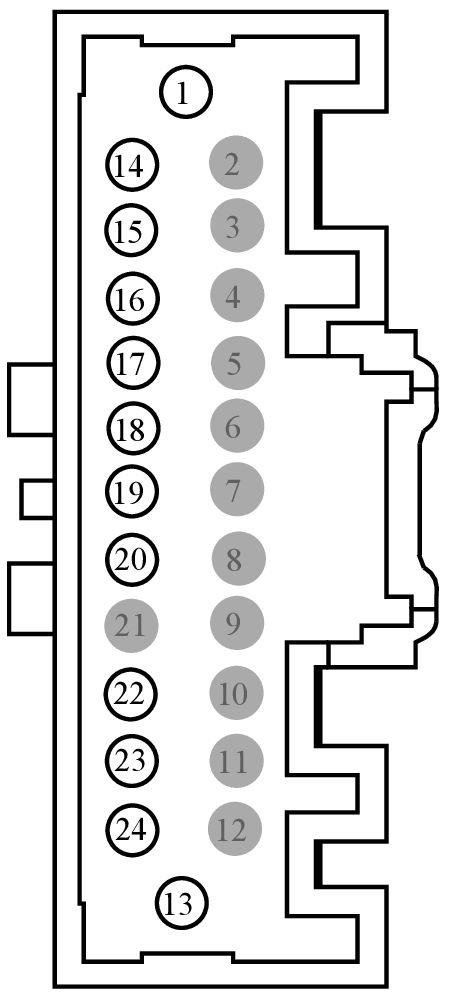

MALE

Harness

PIA

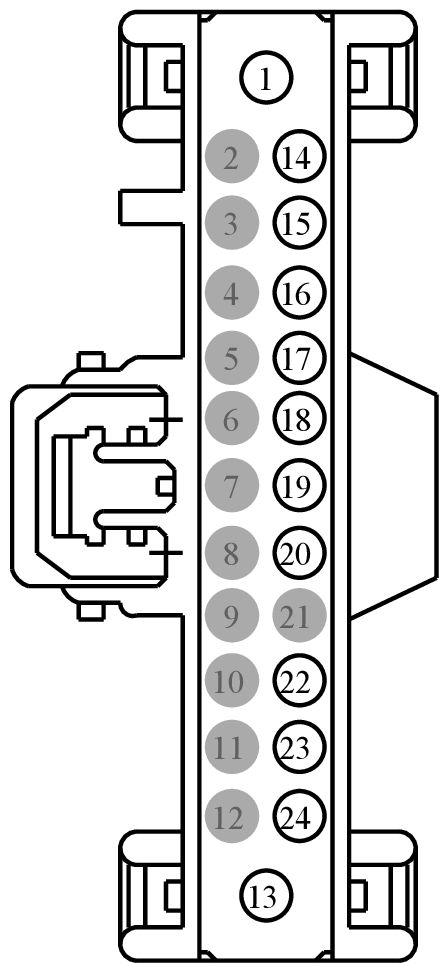

FEMALE

Harness

14401

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GND (BK)	22	N/A
2	*	*	N/A
3	*	*	N/A
4	*	*	N/A
5	*	*	N/A
6	*	*	N/A
7	*	*	N/A
8	*	*	N/A
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	VB1 (VT-RD)	22	N/A
14	SIGGND (BK-GY)	22	N/A
15	HS3CANM (WH-GN)	22	N/A
16	HS3CANP (GN-BU)	22	N/A
17	HS2CANM (GY-BU)	22	N/A
18	HS2CANP (GN-OG)	22	N/A
19	HS1CANM (WH)	22	N/A
20	HS1CANP (WH-BU)	22	N/A
21	*	*	N/A
22	MS1CANM (VT-OG)	22	N/A
23	MS1CANP (GY-OG)	22	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD215 (BK-GY)	22	N/A
2	*	*	N/A
3	*	*	N/A
4	*	*	N/A
5	*	*	N/A
6	*	*	N/A
7	*	*	N/A
8	*	*	N/A
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	SBP15 (WH-RD)	22	N/A
14	GD216 (BK-VT)	22	N/A
15	VDB30 (WH-GN)	22	N/A
16	VDB29 (GN-BU)	22	N/A
17	VDB26 (GY-BU)	22	N/A
18	VDB25 (GN-OG)	22	N/A
19	VDB05 (WH)	22	N/A
20	VDB04 (BU)	22	N/A
21	*	*	N/A
22	VDB07 (VT-OG)	22	N/A
23	VDB06 (GY-OG)	22	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1533

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALB

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

DVD Player
Module - Audio Control
Module - Body Control
Module - Fuel and Damper Control
Module - Gateway
Radio
Test Connector - Diagnostic

Pigtail Kit Part Number WPT-1440

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

DVD Player
Module - Audio Control
Module - Body Control
Module Gateway
Radio
Test Connector - Diagnostic
