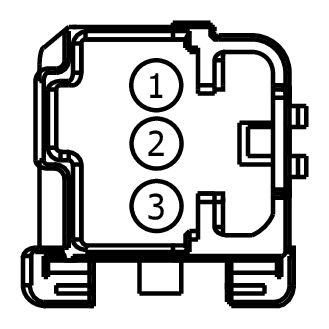

Connector End View (C209) - FRONT FOOTWELL LAMP LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C209 |
FRONT FOOTWELL LAMP LH |
GY |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 1L2T-14421-BA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBX07 (GN-RD) |
22 |
POWER - CTRL MOD. AMBIENT LIGHTING |
1L2T-14421-BA |
| 2 |
VLN73 (GY-BN) |
22 |
CTRL MOD. - AMBIENT LIGHTING LIN BUS |
1L2T-14421-BA |
| 3 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
1L2T-14421-BA |
