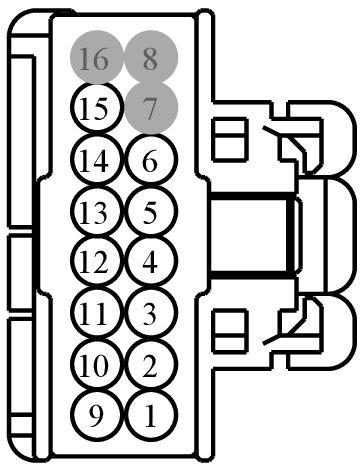

Connector End View (C205) - HEADLAMP SWITCH

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C205	HEADLAMP SWITCH	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLF63 (WH-VT)	22	CTRL MOD. - MOTOR HEADLAMP LEVELING SIGNAL	8U5T-14474-BB
2	CLN13 (WH-BU)	22	SWITCH - TRUNK/CARGO LAMP	8U5T-14474-BB
2	CLF57 (BN-YE)	22	SWITCH - FOG LAMPS REAR (USE CLS48 GOING FORWARD)	8U5T-14474-BB
3	CLN56 (BN-BU)	22	DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN	8U5T-14474-BB
4	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	8U5T-14474-BB
5	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	8U5T-14474-BB
6	CLN55 (YE-VT)	22	DIMMER - IP/SWITCH ILLUMINATION # DIM UP	8U5T-14474-BB
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CBP20 (YE-VT)	22	FUSE - 20 OR CIRCUIT BREAKER	8U5T-14474-BB
10	CLF23 (WH-VT)	22	SWITCH - HEADLAMP OFF	8U5T-14474-BB
11	CLS34 (GY)	22	SWITCH - PARK LAMPS	8U5T-14474-BB
12	CLF24 (YE-BU)	22	SWITCH - HEADLAMP ON	8U5T-14474-BB
13	CLF19 (VT-GN)	22	SWITCH - AUTOLAMP (1) ON	8U5T-14474-BB
14	CLF21 (GY-VT)	22	SWITCH - FOG LAMPS FRONT	8U5T-14474-BB
15	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	8U5T-14474-BB
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1294

Courtesy of FORD MOTOR COMPANY
