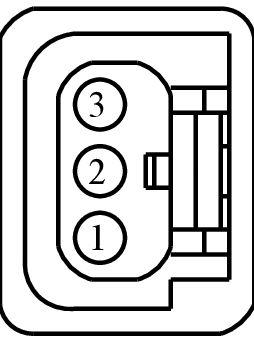

Connector End View (C180) - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C180 | CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11) | DK GY | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE706 (BN-BU) | 20 | SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + | 97BG-14474-ADA | ||||
| 2 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | 97BG-14474-ADA | ||||
| 3 | LE143 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 + | 97BG-14474-ADA | ||||

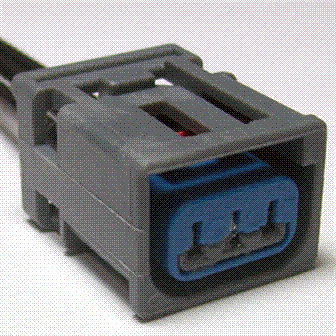

Available Pigtail Kits
Pigtail Kit Part Number WPT-1205
Service Part Number:
3U2Z-14S411-KMB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Cam Shaft Position
- Sensor - Delta Pressure Feedback EGR
- Sensor - Fuel Tank Pressure Transducer
