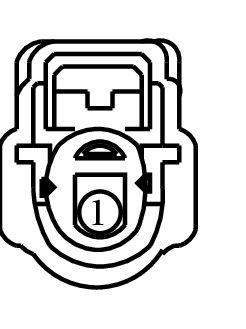

Connector End View (C174) - IGNITION TRANSFORMER CAPACITOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C174 | IGNITION TRANSFORMER CAPACITOR | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK04 (VT) | 18 | FUSE - 35 OR CIRCUIT BREAKER (VPWR 4) | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1253
Service Part Number:
6U2Z-14S411-KB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
1
Vehicle Uses:
- Capacitor - Ignition/Radio
