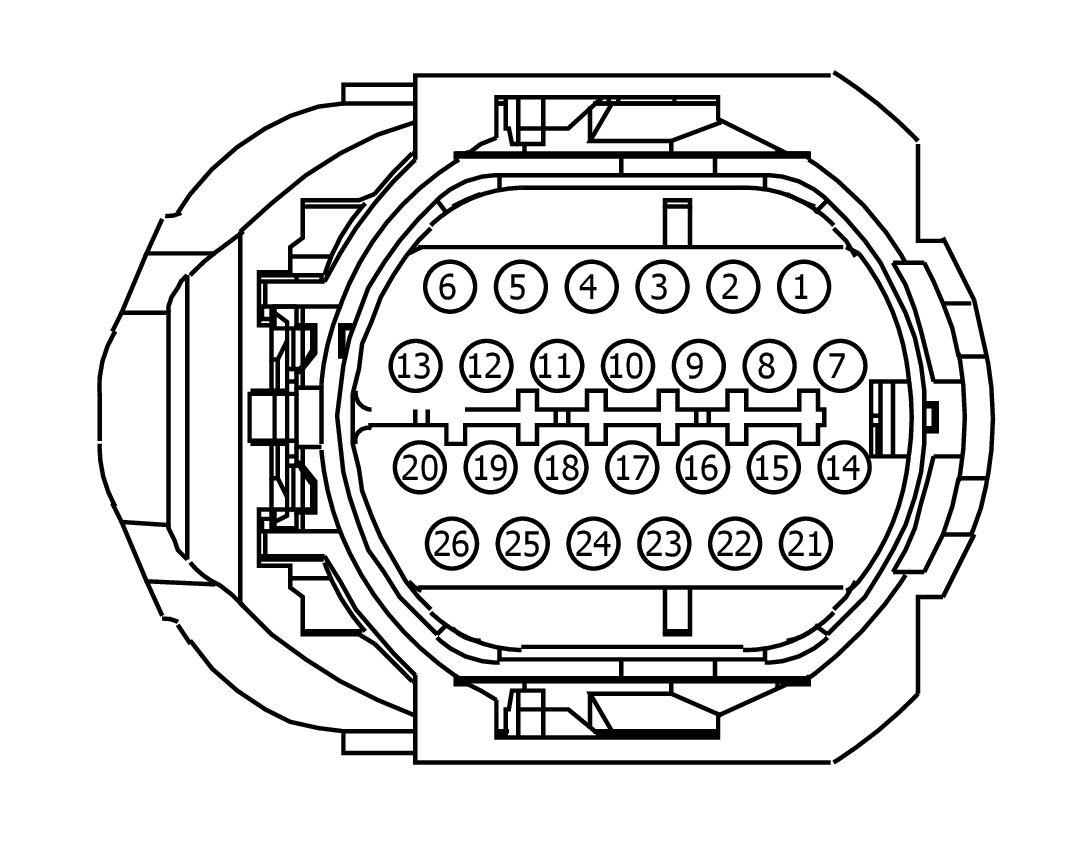

Connector End View (C168A) - 10R80 TRANSMISSION

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C168A	10R80 TRANSMISSION	BK	14406/15525	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6W8T-14474-JA	Not Available
6W8T-14474-BA	EU2Z-14474-BA	1.2

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +	6W8T-14474-BA
2	VETB0 (YE-VT)	20	SENSOR - INTERMEDIATE SHAFT SPEED A +	6W8T-14474-BA
2	VET73 (GN-BN)	20	SENSOR - INTERMEDIATE SHAFT SPEED A +	6W8T-14474-BA
2	VET73 (GN-OG)	20	SENSOR - INTERMEDIATE SHAFT SPEED A +	6W8T-14474-BA
3	VETB1 (BN-WH)	20	SENSOR - INTERMEDIATE SHAFT SPEED B +	6W8T-14474-BA
3	VET74 (BU)	20	SENSOR - INTERMEDIATE SHAFT SPEED B +	6W8T-14474-BA
4	VET26 (BN-RD)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)	6W8T-14474-BA
4	VET26 (BN-GN)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)	6W8T-14474-BA
5	VET84 (BN-GN)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1)	6W8T-14474-BA
6	VET81 (YE-GY)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2)	6W8T-14474-BA
7	LE425 (BU-BN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF)	6W8T-14474-BA
8	LE461 (GY-YE)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2)	6W8T-14474-BA
9	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	6W8T-14474-BA
9	CET25 (BU-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	6W8T-14474-BA
10	CBB98 (GY-OG)	14	FUSE - 98 OR CIRCUIT BREAKER	6W8T-14474-JA
10	CBB98 (GY-OG)	16	FUSE - 98 OR CIRCUIT BREAKER	6W8T-14474-JA
11	CET49 (BN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2)	6W8T-14474-BA
11	CET49 (BN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2)	6W8T-14474-BA
12	CET91 (YE-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE	6W8T-14474-BA
12	CET91 (YE-OG)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE	6W8T-14474-BA
13	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	6W8T-14474-BA
14	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA)	6W8T-14474-BA
15	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB)	6W8T-14474-BA
16	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC)	6W8T-14474-BA
17	GD113 (BK-YE)	14	GROUND - COWL TOP RIGHT	6W8T-14474-JA
17	GD411 (BK-BU)	16	GROUND - FRAME MIDDLE RIGHT #2	6W8T-14474-JA
18	CET85 (GY-OG)	20	CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL	6W8T-14474-BA
19	VET86 (YE-GY)	20	CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP MONITOR	6W8T-14474-BA
20	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	6W8T-14474-BA
21	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD)	6W8T-14474-BA
22	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE)	6W8T-14474-BA
23	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID F (SSF)	6W8T-14474-BA
24	CET50 (WH-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC)	6W8T-14474-BA
25	CET51 (WH)	20	CTRL MOD. - POWERTRAIN # TORQUE CONVERTER CLUTCH (TCC)	6W8T-14474-BA
26	CET44 (BU-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 3 (SS3)	6W8T-14474-BA
