Connector End View (C146) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C146 | INLINE | BK | 12A58114B060 | See Below | ||||

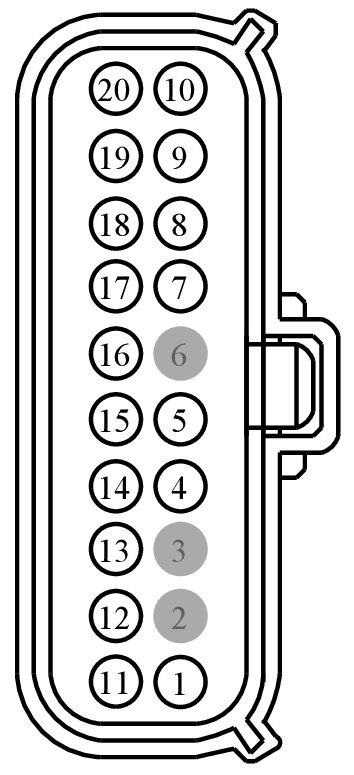

MALE
Harness
12A581

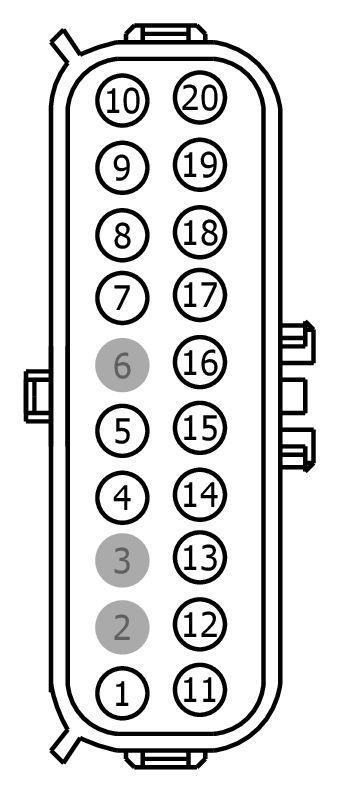

FEMALE
Harness
14B060
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| JU5T-14474-AAA | Not Available | |
| JU5T-14474-ACA | Not Available | |
| JU5T-14474-ABA | Not Available | |
| 2L1T-14421-DA | EU2Z-14421-CA | 1.5 |
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CETA7 (GY-YE) | 22 | BU5T-14421-HA | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | VDN03 (GY-VT) | 20 | BU5T-14421-HA | |||
| 5 | RE407 (YE-VT) | 22 | BU5T-14421-HA | |||
| 6 | * | * | N/A | |||
| 7 | CBK03 (GY) | 22 | BU5T-14421-HA | |||
| 8 | CDC10 (BU-OG) | 22 | BU5T-14421-HA | |||
| 9 | CDC15 (GN) | 22 | BU5T-14421-HA | |||
| 10 | CDC25 (BN-GN) | 14 | 2L1T-14421-DA | |||
| 11 | SBB23 (WH-RD) | 20 | BU5T-14421-HA | |||
| 12 | LE458 (BU-WH) | 22 | BU5T-14421-HA | |||
| 12 | LE459 (GY) | 22 | BU5T-14421-HA | |||
| 13 | VDC61 (VT-GN) | 22 | BU5T-14421-HA | |||
| 14 | CH401 (VT-WH) | 22 | BU5T-14421-HA | |||
| 15 | GD132 (BK-VT) | 22 | BU5T-14421-HA | |||
| 16 | VH433 (VT-OG) | 22 | BU5T-14421-HA | |||
| 17 | VE462 (WH-BN) | 22 | BU5T-14421-HA | |||
| 18 | CBK03 (GY) | 22 | BU5T-14421-HA | |||
| 19 | LE424 (YE-GN) | 22 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CETA7 (GY-YE) | 20 | JU5T-14474-AAA | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | VDN03 (GY-VT) | 20 | JU5T-14474-AAA | |||
| 5 | RE407 (YE-VT) | 20 | JU5T-14474-AAA | |||
| 6 | * | * | N/A | |||
| 7 | CBK03 (GY) | 20 | JU5T-14474-AAA | |||
| 8 | CDC10 (BU-OG) | 20 | JU5T-14474-AAA | |||
| 9 | CDC15 (GN) | 20 | JU5T-14474-AAA | |||
| 10 | CDC25 (BN-GN) | 14 | JU5T-14474-ACA | |||
| 11 | SBB23 (WH-RD) | 18 | JU5T-14474-ABA | |||
| 12 | LE458 (BU-WH) | 20 | JU5T-14474-AAA | |||
| 12 | LE459 (GY) | 20 | JU5T-14474-AAA | |||
| 13 | VDC61 (VT-GN) | 20 | JU5T-14474-AAA | |||
| 14 | CH401 (VT-WH) | 20 | JU5T-14474-AAA | |||
| 15 | GD132 (BK-VT) | 20 | JU5T-14474-AAA | |||
| 16 | VH433 (VT-OG) | 20 | JU5T-14474-AAA | |||
| 17 | VE462 (WH-BN) | 20 | JU5T-14474-AAA | |||
| 18 | CBK03 (GY) | 20 | JU5T-14474-AAA | |||
| 19 | LE424 (YE-GN) | 20 | JU5T-14474-AAA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1567
Service Part Number:
7U2Z-14S411-HB
Gauge:
16
Pin material:
Silver
Cavities:
20
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-889
Service Part Number:
7U2Z-14S411-GA
Gauge:
16
Pin material:
Silver
Cavities:
20
Vehicle Uses:
- Connector - Inline
- For Mating Connector Refer To WPT-890
