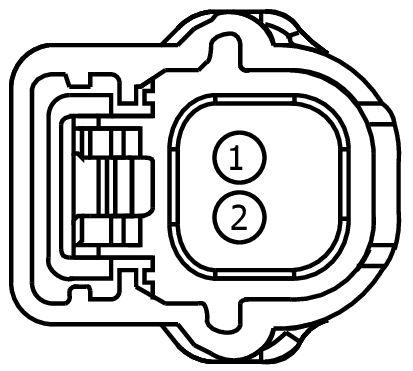

Connector End View (C138) - WINDSHIELD WASHER FLUID LEVEL SENSOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C138 |
WINDSHIELD WASHER FLUID LEVEL SENSOR |
GY |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 3F2T-14474-RA |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CMC20 (GY) |
20 |
SWITCH - LOW LEVEL WASHER FLUID |
3F2T-14474-RA |
| 1 |
CMC20 (VT) |
20 |
SWITCH - LOW LEVEL WASHER FLUID |
3F2T-14474-RA |
| 2 |
GD131 (BK-GY) |
20 |
GROUND - HEADLAMP PANEL/GOR RIGHT |
3F2T-14474-RA |
