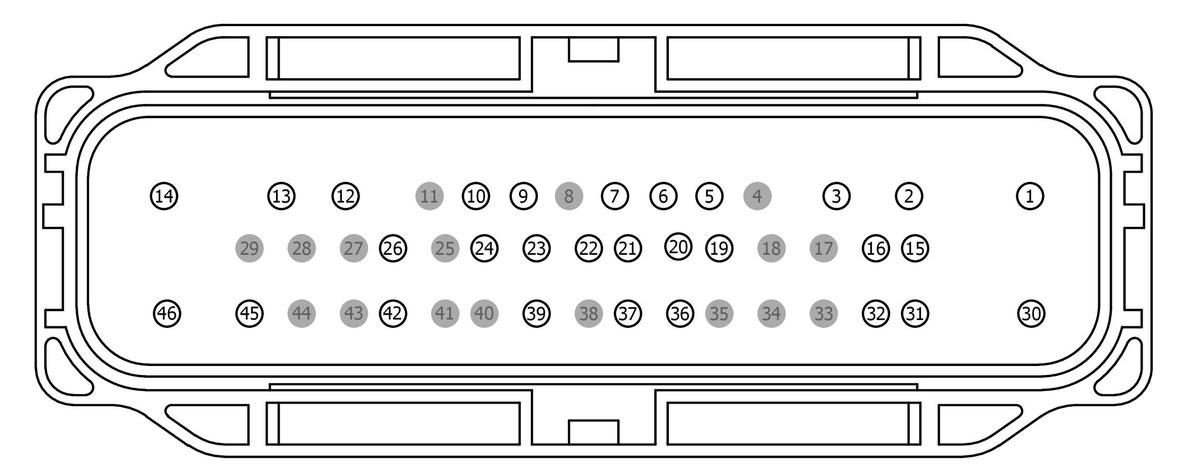

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C135	ANTI-LOCK BRAKE SYSTEM (ABS) MODULE	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6G9T-14474-HCA	Not Available
6G9T-14474-LDA\|6G9T-14474-LCA	Not Available
6W8T-14474-XA	EU2Z-14474-BA	1.2
6W8T-14474-WA	EU2Z-14474-BA	1.2
6G9T-14474-LDA	KU2Z-14474-BA	6.3

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBF04 (GN-RD)	10	FUSE - 4	6G9T-14474-LDA
2	CCB18 (YE-GY)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+)	6G9T-14474-HCA
3	CCB19 (GN-BN)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-)	6G9T-14474-HCA
4	*	*	Not Used	N/A
5	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	6W8T-14474-XA
6	CPL92 (GN)	22	SWITCH - LATCH DRIVER STATUS DIAGNOSABLE	6W8T-14474-XA
7	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	6W8T-14474-WA
8	*	*	Not Used	N/A
9	CCB24 (WH-OG)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5	6W8T-14474-XA
10	CCB21 (GN-VT)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2	6W8T-14474-XA
11	*	*	Not Used	N/A
12	CCB17 (BU-GN)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)	6G9T-14474-HCA
13	CCB16 (WH-VT)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+)	6G9T-14474-HCA
14	GD130 (BK-YE)	10	GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT	6G9T-14474-LDA
15	CCB22 (WH-BN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3	6W8T-14474-XA
16	CCB20 (BU-WH)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1	6W8T-14474-XA
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	6W8T-14474-XA
20	LCA37 (YE-OG)	22	CTRL MOD. - SENSOR BRAKE VACUUM +	6W8T-14474-XA
21	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT	6W8T-14474-WA
22	VCA06 (WH-OG)	22	SENSOR - WHEEL SPEED RIGHT REAR	6W8T-14474-XA
23	RCA18 (BN-GN)	22	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR	6W8T-14474-XA
24	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT	6W8T-14474-WA
25	*	*	Not Used	N/A
26	RCA19 (GN-WH)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT	6W8T-14474-WA
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	SBB70 (BN-RD)	10	FUSE - 70 OR CIRCUIT BREAKER	6G9T-14474-LDA\|6G9T-14474-LCA
30	SBB70 (BN-RD)	12	FUSE - 70 OR CIRCUIT BREAKER	6G9T-14474-LDA\|6G9T-14474-LCA
31	CCB25 (BN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6	6W8T-14474-XA
32	CCB23 (VT-GN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4	6W8T-14474-XA
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	CBB17 (BN-GN)	22	FUSE - 17 OR CIRCUIT BREAKER	6W8T-14474-XA
37	RCA20 (BN)	22	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR	6W8T-14474-XA
38	*	*	Not Used	N/A
39	VCA04 (BU-OG)	22	SENSOR - WHEEL SPEED LEFT REAR	6W8T-14474-XA
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	RCA37 (WH-BU)	22	CTRL MOD. - SENSOR BRAKE VACUUM -	6W8T-14474-XA
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	VCA38 (BN)	22	SENSOR - BRAKE VACUUM SIGNAL 1	6W8T-14474-XA
46	GD130 (BK-YE)	10	GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT	6G9T-14474-LDA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1612

Service Part Number:

KU2Z-14S411-AAA

Gauge:

14 18

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Module - Anti-Lock Brake System
