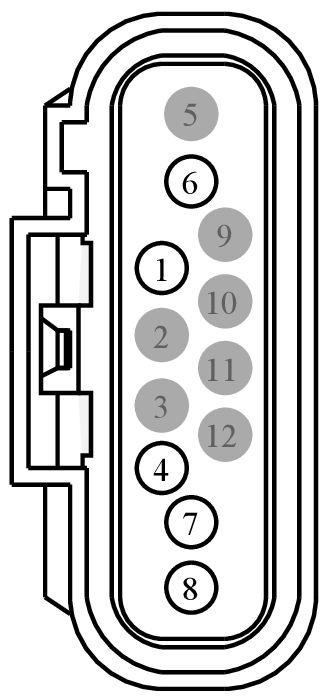

Connector End View (C125) - WINDSHIELD WIPER MOTOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C125 | WINDSHIELD WIPER MOTOR | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1F1T-14474-GA | DU2Z-14474-FA | 2.8 |
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CRW15 (BN-WH) | 22 | CTRL MOD. - FRONT WIPER HIGH | 3F2T-14474-SA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | VX107 (YE-GY) | 22 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE | 3F2T-14474-SA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | GD129 (BK-YE) | 16 | GROUND - HEADLAMP PANEL/GOR LEFT | 1F1T-14474-GA | ||||
| 7 | CRW14 (BU-WH) | 16 | CTRL MOD. - FRONT WASHER | 1F1T-14474-GA | ||||
| 8 | CRW03 (VT-WH) | 16 | RELAY - FRONT WIPER | 1F1T-14474-GA | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1316
Service Part Number:
BU2Z-14S411-AB
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
12
Vehicle Uses:
- Motor - Windshield Wiper
