Connector End View (C117) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C117 | INLINE | BK | 14A0053D097 | See Below | ||||

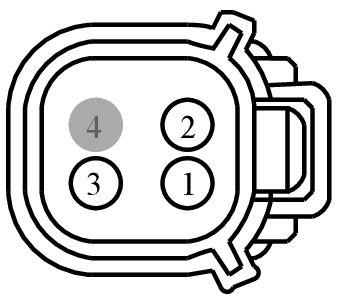

MALE
Harness
14A005

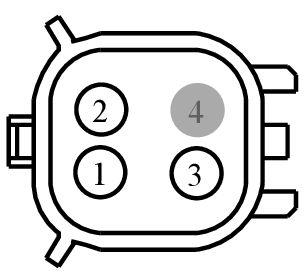

FEMALE
Harness
3D097
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | LCD27 (YE-GY) | 22 | BU5T-14421-HA | |||
| 2 | RCD27 (WH-GN) | 22 | BU5T-14421-HA | |||
| 3 | VCD10 (BN) | 22 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | LCD27 (YE-GY) | 18 | 7C3T-14474-DA | |||
| 2 | RCD27 (WH-GN) | 18 | 7C3T-14474-DA | |||
| 3 | VCD10 (BN) | 18 | 7C3T-14474-DA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1288
Service Part Number:
CU2Z-14S411-ZA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-1570
Service Part Number:
CU2Z-14S411-ZB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Actuator - Door Lock - RH - Front
- Connector - Inline
- Lamp - Fog/Driving
- Lamp - Liftgate Applique
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Switch - Seat Belt Warning
Pigtail Kit Part Number WPT-1498
Service Part Number:
BU2Z-14S411-TB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Lamp - Reverse
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Speaker - Subwoofer
- Switch - Heated Seat - LH - Rear
- Switch - Heated Seat - RH - Rear
- Valve - Active Exhaust Solenoid
