Transmission Fluid Cooler Tubes - 6-Speed Automatic Transmission - 6R100: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the radiator grille. Refer to: Radiator Grille .
- Remove the transmission fluid cooler tube coupling secondary latches.
-
NOTE: Be prepared to collect escaping fluid.

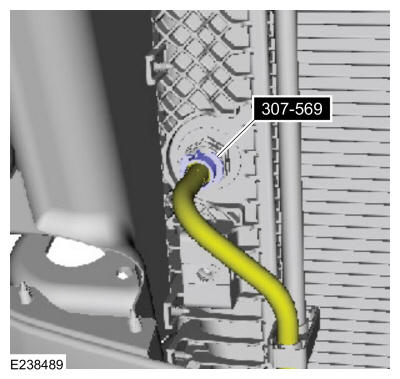

Using the special tool, disconnect the auxiliary transmission fluid cooler RH tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
-
NOTE: Be prepared to collect escaping fluid.

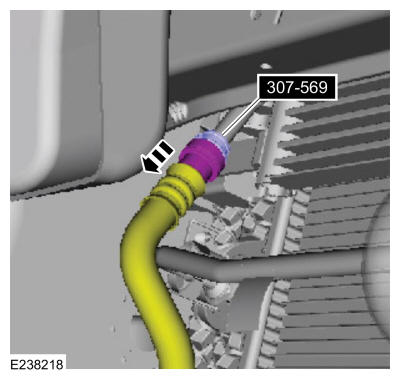

Using the special tool, disconnect the auxiliary transmission fluid cooler LH tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
- Remove the transmission fluid in-tank cooler-to-auxiliary cooler tube secondary latch.
-
NOTE: Be prepared to collect escaping fluid.

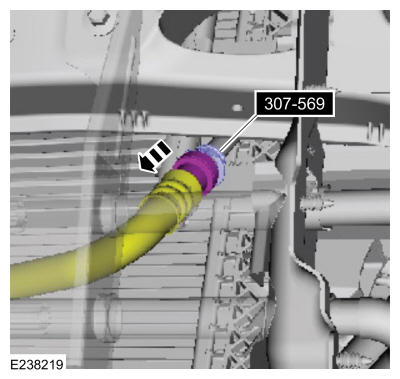

Using the special tool, disconnect and remove the transmission fluid in-tank cooler-to-auxiliary cooler tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
- Remove the transmission-to-in-tank cooler tube secondary latch.
-
NOTE: Be prepared to collect escaping fluid.

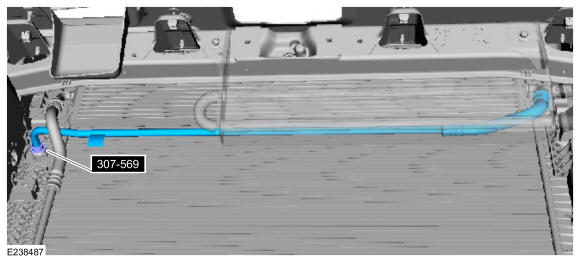

Using the special tool, disconnect the transmission-to-in-tank cooler tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
- Remove the transmission fluid cooler tubes-to-transmission fluid cooler front tubes secondary latches.
-
NOTE: Be prepared to collect escaping fluid.

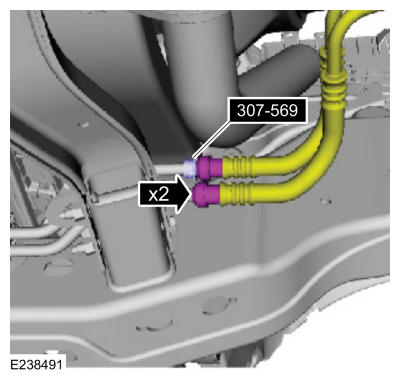

Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler front tubes.
- Disconnect the transmission fluid cooler front tubes retainer and remove the transmission fluid cooler front tubes.
- Remove the transmission fluid cooler tubes bracket nut.
- Remove the transmission fluid cooler tubes bracket bolt.
- Remove the bolt and the transmission fluid cooler tubes.
- Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
