Transmission Fluid Cooler - 6.7L Power Stroke Diesel: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

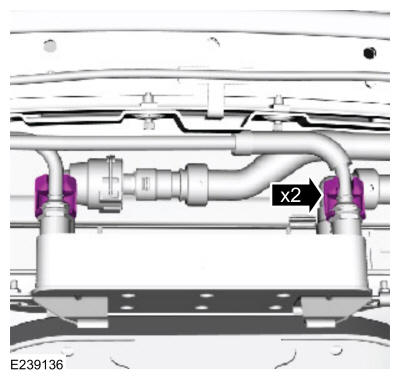

- Remove the transmission fluid cooler tubes secondary latches.

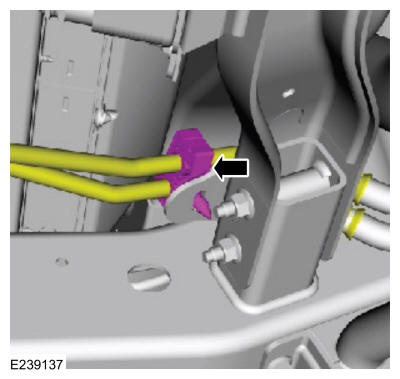

- Disconnect the transmission fluid cooler tubes retainer.
-
NOTE: Be prepared to collect escaping fluid.

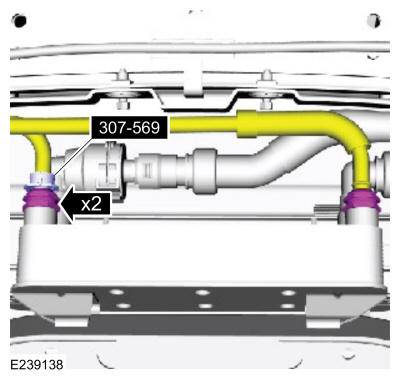

Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
-
NOTE: Be prepared to collect escaping fluid.

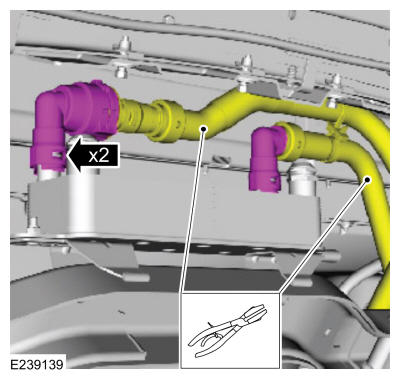

Clamp and disconnect the coolant hoses from the transmission fluid cooler. Use the General Equipment: Hose Clamp(s)

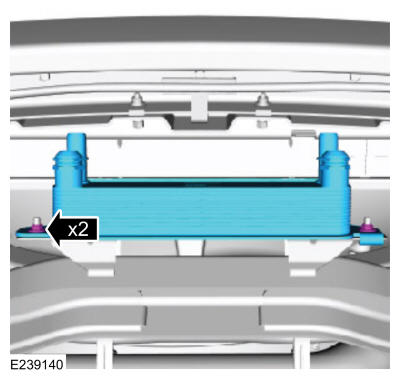

- Remove the nuts and the transmission fluid cooler.
Torque: 150 lb.in (17 Nm)
