Transmission Fluid Auxiliary Cooler - 6.2L V8 6.8L Triton-30V - V10: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the radiator grille. Refer to: Radiator Grille .

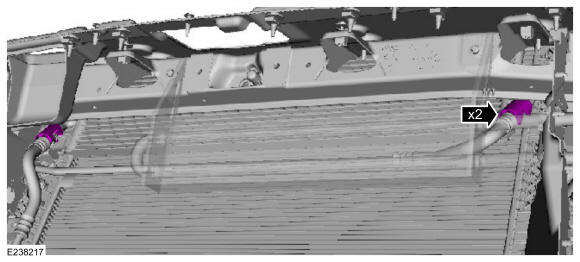

Remove the transmission fluid cooler tube coupling secondary latches.

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Using the special tool, disconnect the auxiliary transmission fluid cooler RH tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Using the special tool, disconnect the auxiliary transmission fluid cooler LH tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

Courtesy of FORD MOTOR COMPANY

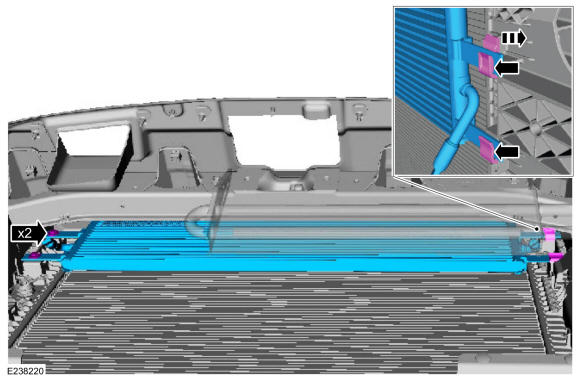

Remove the bolts, unlatch the retainer and remove the auxiliary transmission fluid cooler.
Torque: 62 lb.in (7 Nm)
