Rear Seat RH - Super Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

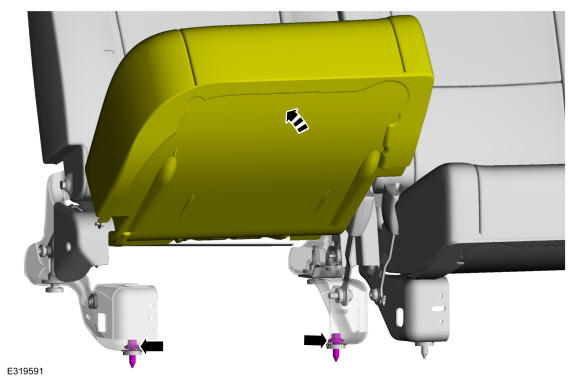

- Raise the seat cushion.
- Remove the bolts.
  Torque: 19 lb.ft (26 Nm)
Courtesy of FORD MOTOR COMPANY
Pull the backrest release strap and fold the seat backrest down.

Courtesy of FORD MOTOR COMPANY
Remove the seat rear nuts. Remove the seat.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
