Rear Seat RH - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
Vehicles with inflatable seatbelts
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
-
NOTE: Follow the unique instruction or graphic for this step in installation.
Open the seatbelt tongue cover.
- Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
- Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
- Push the seatbelt tongue lower cover forward to disengage and open the cover.
-
NOTE: Follow the unique instruction or graphic for this step in installation.
Disassemble the lap belt from the seatbelt tongue.
- Push down on the lap belt spring clip.
- Remove the pin.
- Pull the lap belt through the seatbelt tongue cover.
Vehicles without inflatable seatbelts
- Remover the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)
All vehicles
-
NOTE: The rear seat cushion must be unlocked to perform this step if the vehicle has rear under seat storage.
Raise the rear seat cushion.

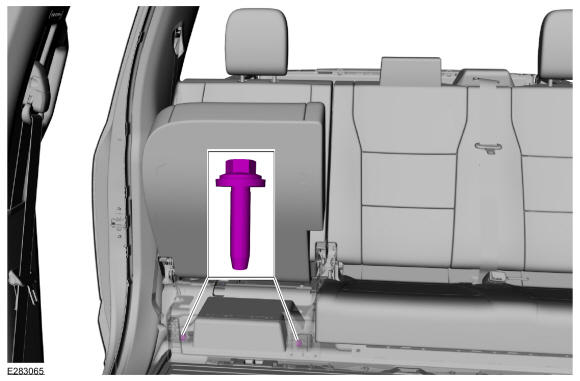

- Remove the rear seat front bolts.
Torque: 35 lb.ft (47 Nm)

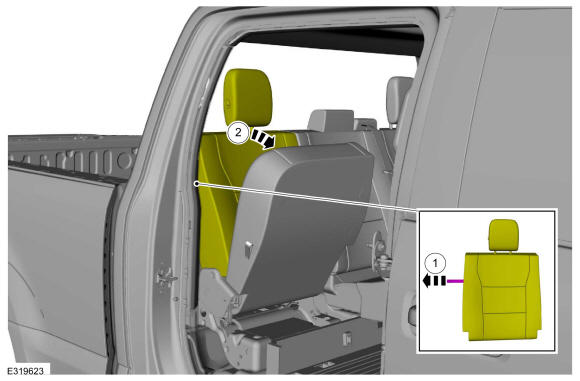

- Fold the rear seat backrest down.
- Release the backrest latch.
- Fold the rear seat backrest down.
Vehicles with heated seats or inflatable seatbelts
- Disconnect the electrical connector(s).
- If equipped. Disconnect the heated seat electrical connector and detach the wiring harness retainer.
- If equipped. Disconnect the inflatable seatbelt buckle switch electrical connector.
All vehicles
- Remove the seat rear nuts. Remove the seat.
Torque: 59 lb.ft (80 Nm)
