Rear Seat Latch: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: LH (left-hand) shown, RH (right-hand) similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat. Refer to: Rear Seat LH - Super Cab . Refer to: Rear Seat RH - Super Cab . Refer to: Rear Seat LH - Crew Cab . Refer to: Rear Seat RH - Crew Cab .

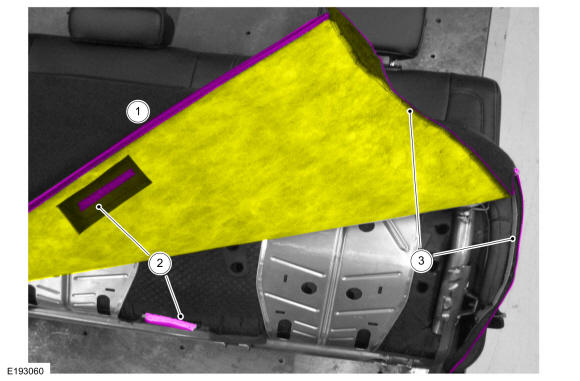

Open the outboard side of the cushion cover.
1. Release the cushion lower J-clip.
2. Release the hook-and-loop strip.
3. Unzip and open the outboard side of the cushion cover.
Courtesy of FORD MOTOR COMPANY

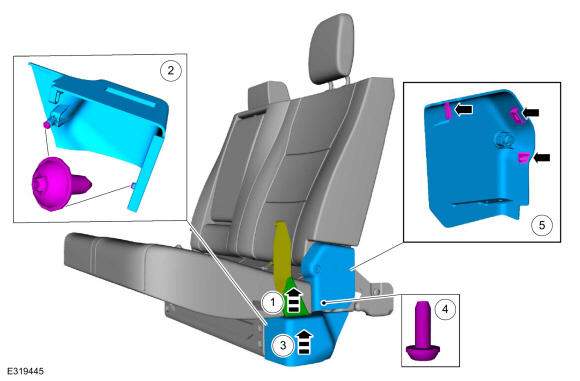

Vehicles with inflatable seatbelts and rear under seat storage
Remove the lower seatbelt retractor cover and the rear seat side shield.
1. Remove the dust boot.
2. Remove the screws.
3. Remove the cover while feeding the seatbelt through the opening.
4. Remove the screw.
5. Release the retainers and remove the side shield.
Courtesy of FORD MOTOR COMPANY

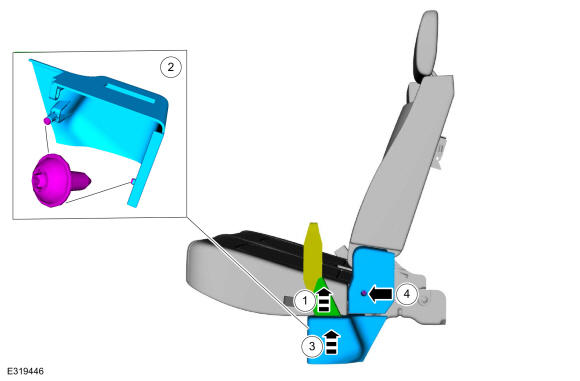

Vehicles with inflatable seatbelts and without rear under seat storage
Remove the lower seatbelt retractor cover and the rear seat side shield.
1. Remove the dust boot.
2. Remove the screws.
3. Remove the cover while feeding the seatbelt through the opening.
4. Remove the screw and the side shield.
Courtesy of FORD MOTOR COMPANY

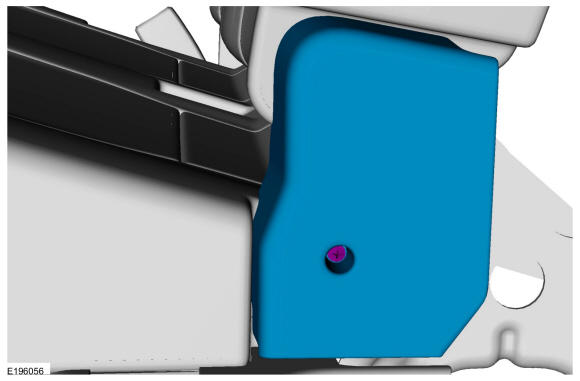

Vehicles without inflatable seatbelts and rear under seat storage
Remove the screw and the rear seat side shield.

Courtesy of FORD MOTOR COMPANY

All vehicles

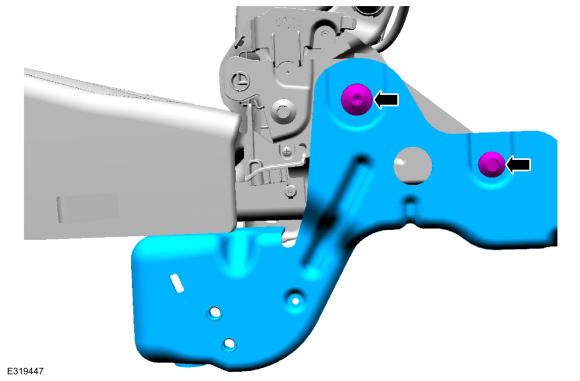

Remove the bolts and the outboard riser.
Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

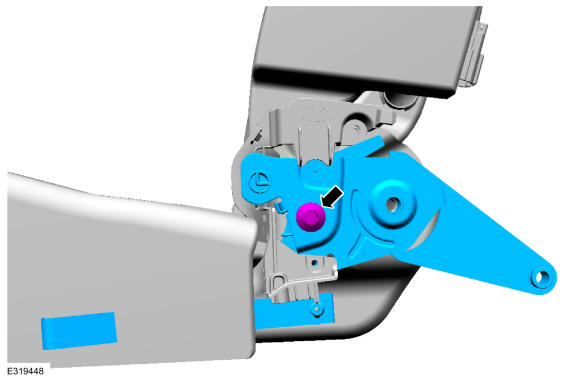

Remove the bolt and the cushion latch assembly.
Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY
