Rear Seat LH - Super Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH seat. Refer to: Rear Seat RH - Super Cab .
Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

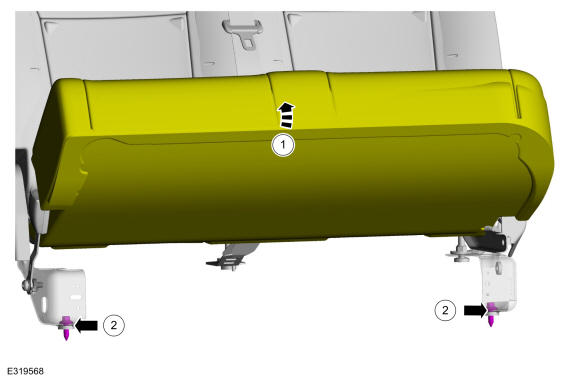

Remove the seat front bolts.
1. Raise the seat cushion.
2. Remove the bolts.
  Torque: 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: During installation the striker should be in its lowest position for the latch to engage.

Lower the LH backrest.
1. Pull the backrest release strap and release the latch from the striker.
2. Lower the backrest.
Courtesy of FORD MOTOR COMPANY

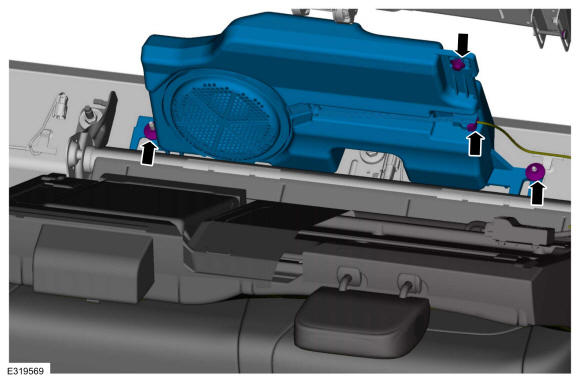

If equipped. Disconnect the subwoofer electrical connector, remove the fasteners and the subwoofer.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

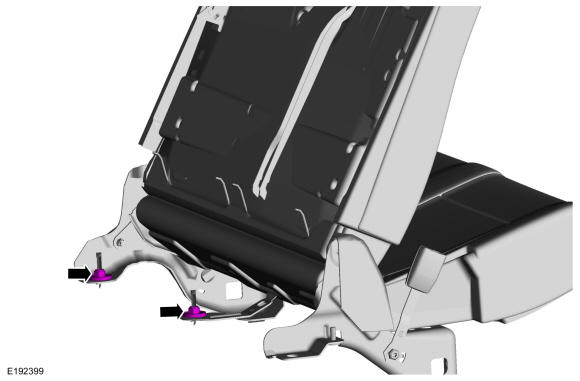

Remove the seat rear bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the seat.
1. Route the center seatbelt through the cushion opening.
2. Remove the seat.

Courtesy of FORD MOTOR COMPANY
