Rear Seat LH - Crew Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH seat. Refer to: Rear Seat RH - Crew Cab .
Vehicles with inflatable seatbelts
NOTE: Follow the unique instruction or graphic for this step in installation.

Open the seatbelt tongue cover.
1. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
2. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
3. Push the seatbelt tongue lower cover forward to disengage and open the cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instruction or graphic for this step in installation.

Disassemble the lap belt from the seatbelt tongue.
1. Push down on the lap belt spring clip.
2. Remove the pin.
3. Pull the lap belt through the seatbelt tongue cover.
Courtesy of FORD MOTOR COMPANY

Vehicles without inflatable seatbelts

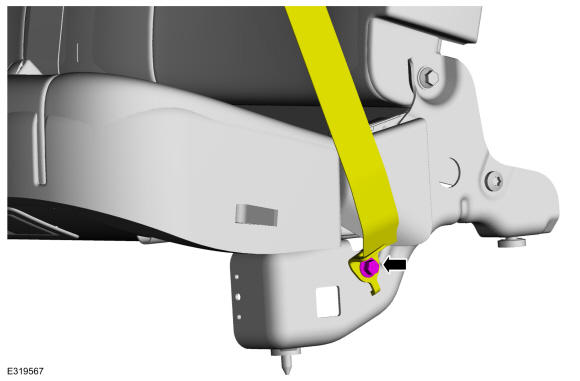

Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: The rear seat cushion must be unlocked to perform this step if vehicle has rear under seat storage.

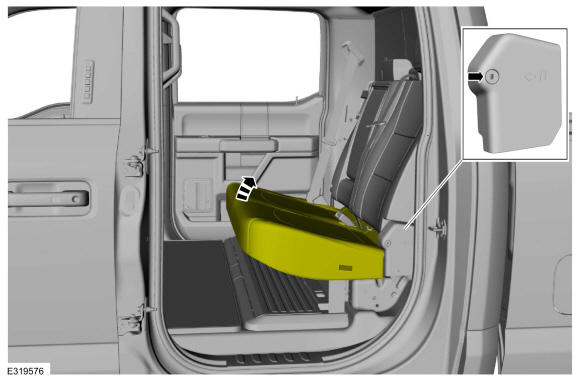

Raise the rear seat cushion.

Courtesy of FORD MOTOR COMPANY

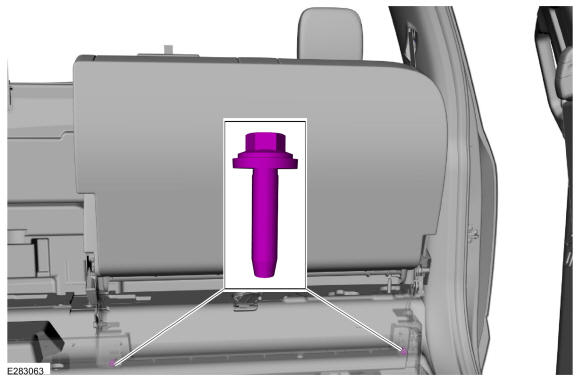

Remove the rear seat front bolts.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

NOTE: During installation the striker should be in its lowest position for the latch to engage.

Fold the LH rear seat backrest down.
1. Raise the seat cushion.
2. Release the backrest latch.
3. Fold the backrest down.
Courtesy of FORD MOTOR COMPANY

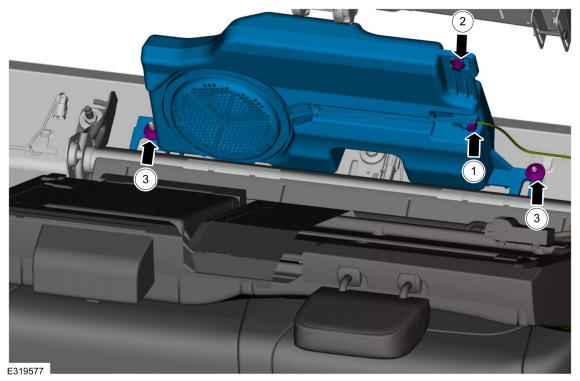

If equipped. Remove the subwoofer.
1. Disconnect the electrical connector.
2. Remove the bolt.
  Torque: 62 lb.in (7 Nm)
3. Remove the nuts.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

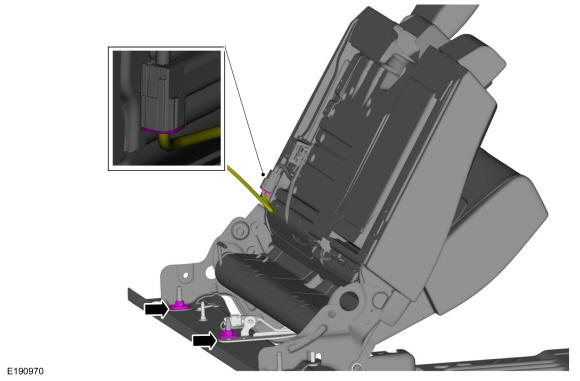

Disconnect the heated seat electrical connector and remove the seat rear bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

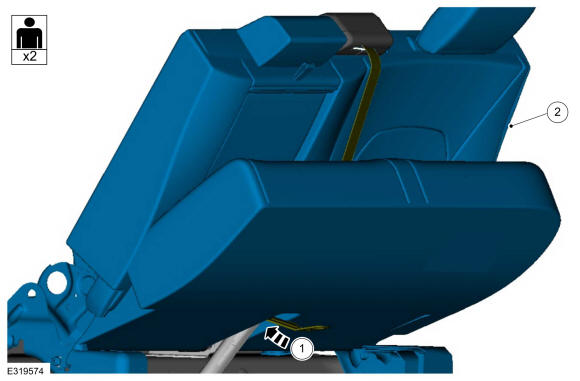

Remove the seat.
1. Route the center seatbelt through the cushion opening.
2. Remove the seat.

Courtesy of FORD MOTOR COMPANY
