Rear Seat Cushion Cover - Super Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: LH (left-hand) shown, RH (right-hand) similar.

Remove the rear seat. Refer to: Rear Seat RH - Super Cab . Refer to: Rear Seat LH - Super Cab .

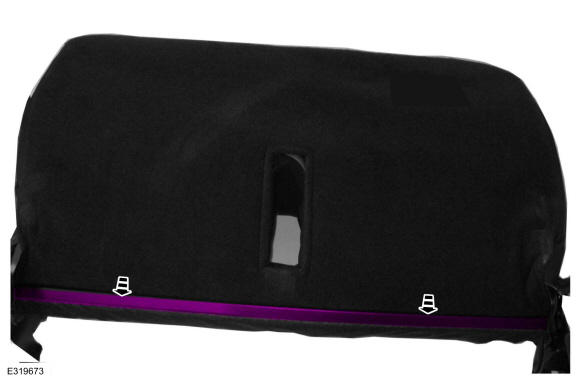

Release the seat cushion cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat cushion cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam.

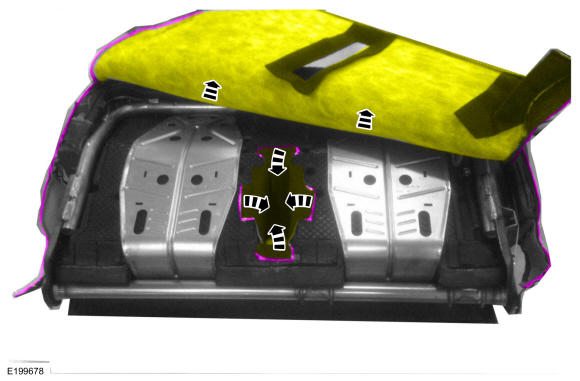

Unzip and open the cushion cover. Release the hook-and-loop strips.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat cushion cover from the hook-and-arrow strip or the hook can be torn from the foam.

NOTE: Use care when separating the seat cushion cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the foam.

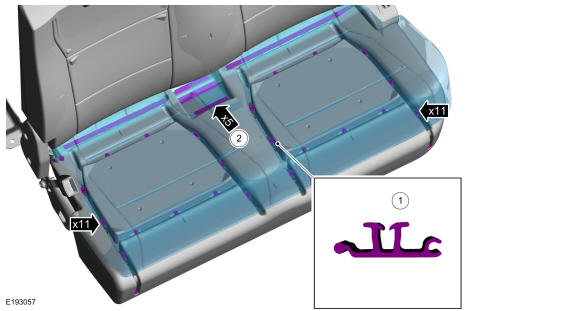

Release the hook-and arrows from the foam and remove the cushion cover.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

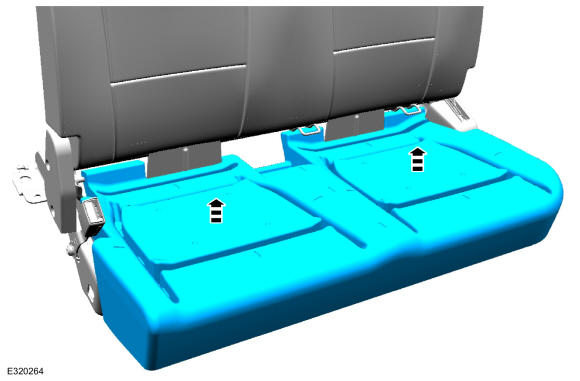

Remove the cushion foam.

Courtesy of FORD MOTOR COMPANY
