Rear Seat Cushion Cover - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
LH (left-hand) shown, RH (right-hand) similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the seat. Refer to: Rear Seat LH - Crew Cab . Refer to: Rear Seat RH - Crew Cab .
- Release the lower cushion cover.
- Release the cushion cover lower J-clip.
- Unzip the cushion cover.
Vehicles with heated seats
- Release the backrest cover lower J-clip.
- Release the backrest cover rear strap and position aside.

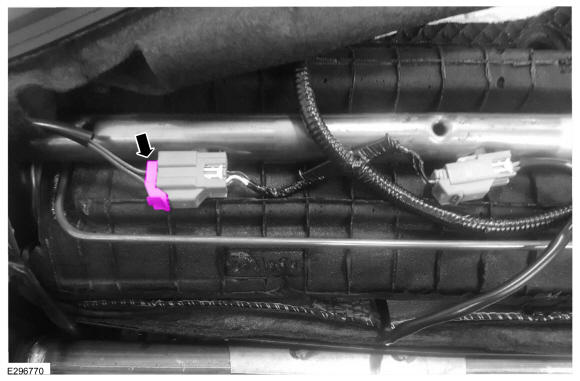

- Disconnect the heated seat electrical connector.
All vehicles
-
NOTE: Use care when separating the seat cushion cover from the hook-and-arrow strip or the hook can be torn from the foam.

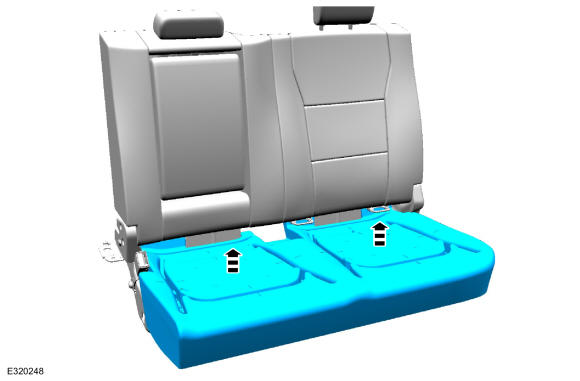

Remove the cushion cover from the foam.

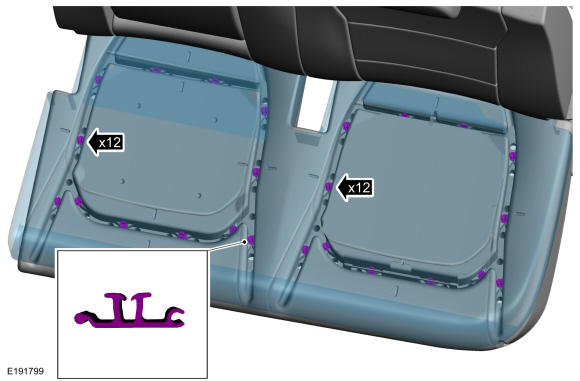

- Release the hook-and-arrows.
- Release the hook-and-loop strips.
-
NOTE: This step is only necessary when installing a new component.
Remove the cushion foam.
