Rear Seat Backrest Cover - Super Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
LH shown, RH similar.
- Remove the rear seat backrest. Refer to: Rear Seat Backrest - Super Cab .
- Remove the head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .

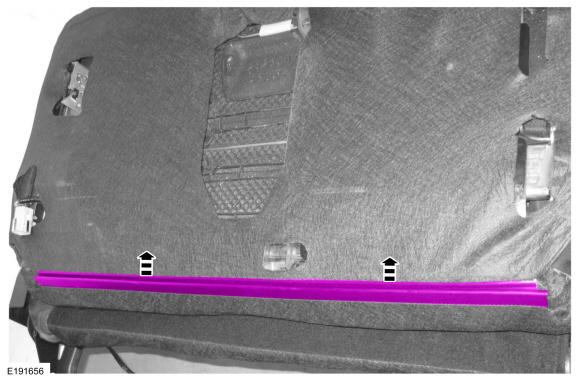

- Release the backrest cover lower J-clip.
- On both sides, unzip the backrest cover.
-
NOTE: Use care when separating the backrest cover from the hook-and-arrow strip or the hook can be torn from the foam.

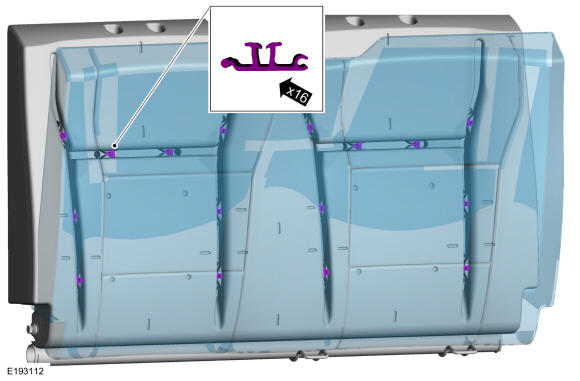

Release the hook-and-arrows and remove the backrest cover from the foam.
