Rear Seat Backrest Cover - Crew Cab: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the seat. Refer to: Rear Seat LH - Crew Cab  . Refer to: Rear Seat RH - Crew Cab  .
2. Remove the backrest. Refer to: Rear Seat Backrest - Crew Cab  .
3. Remove the head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve  .
4. If equipped. Remove the armrest. Refer to: Rear Seat Armrest - Crew Cab  .

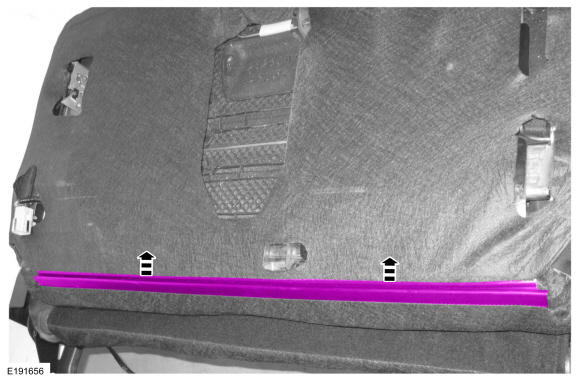

5. Release the backrest cover lower J-clip.

   Courtesy of FORD MOTOR COMPANY

6. On both sides, unzip the backrest cover.

   Courtesy of FORD MOTOR COMPANY

7. Release the backrest cover rear strap and position aside.

   Courtesy of FORD MOTOR COMPANY

   LH seat

8. Release the center backrest J-clip and armrest cavity retainers.

   Courtesy of FORD MOTOR COMPANY

   All seats

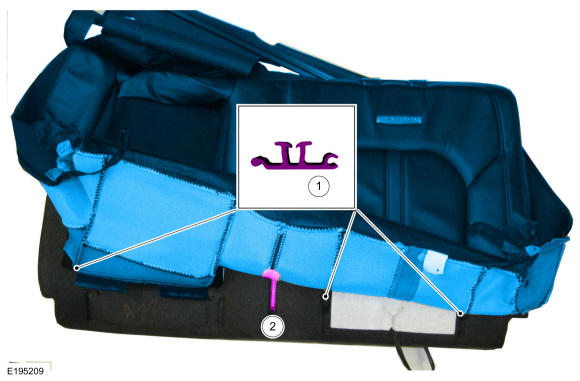

9. NOTE: Use care when separating the seat backrest cover from the hook-and-loop strip or the hook-and-loop strip can be torn from the foam.
   NOTE: Use care when separating the backrest cover from the hook-and-arrow strip or the hook can be torn from the foam.

   Remove the backrest cover from the foam.

   1. Release the hook-and-arrows.
   2. Release the hook-and-loop strip.

   Courtesy of FORD MOTOR COMPANY

   NOTE: This step is only necessary when installing a new component.

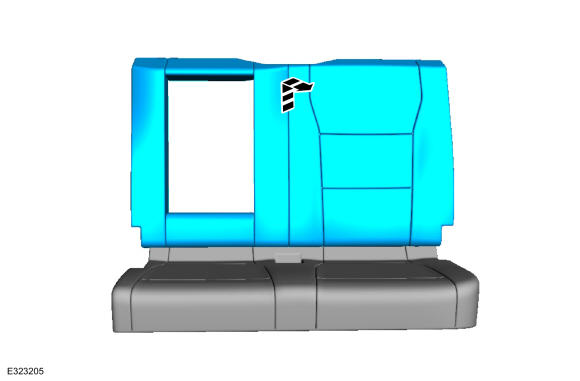

10. Remove the backrest foam.

Courtesy of FORD MOTOR COMPANY
