Rear Seat Backrest - Super Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
LH shown, RH similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear seat. Refer to: Rear Seat LH - Super Cab . Refer to: Rear Seat RH - Super Cab .

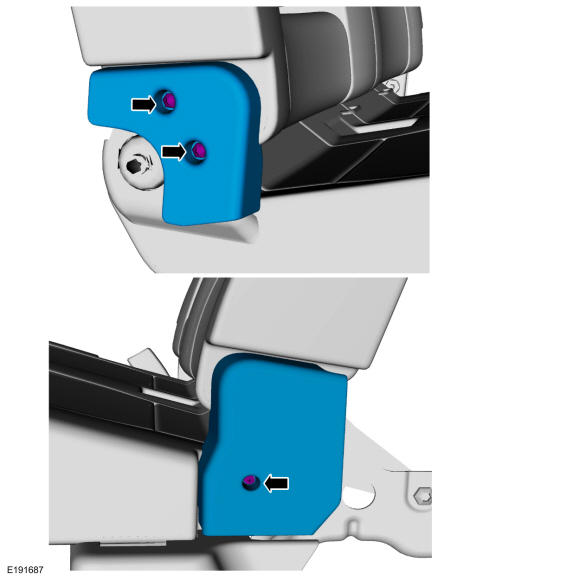

- Remove the inboard and outboard cushion side shield screws and remove the side shields.

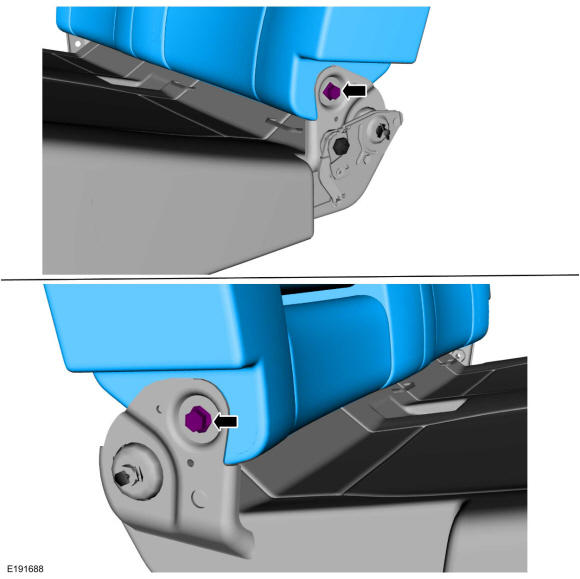

- Remove the inboard and outboard pivot bolts. Remove the backrest.
Torque: 18 lb.ft (25 Nm)
