Rear Seat Backrest - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
LH (left-hand) shown, RH (right-hand) similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the seat. Refer to: Rear Seat LH - Crew Cab . Refer to: Rear Seat RH - Crew Cab .
- Remove the rear seat side shield(s).

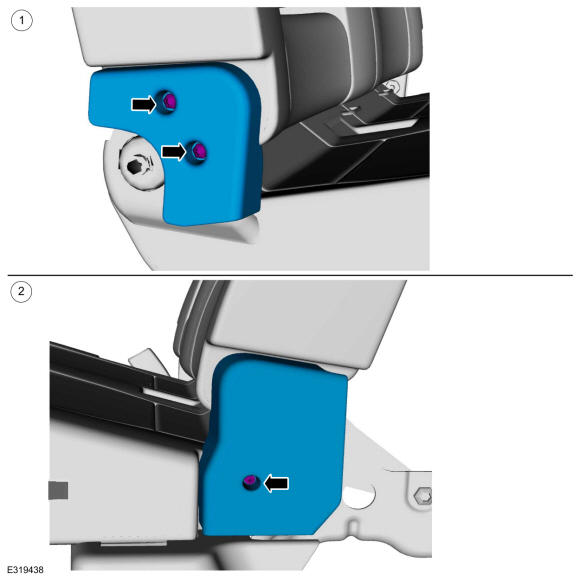

- Remove the screws and the rear seat inboard side shield.
- If equipped without rear under seat storage. Remove the screw and the rear seat outboard side shield.
Vehicles with rear under seat storage
- Remove the rear seat side shield.
- Remove the screw.
- Release the retainers.

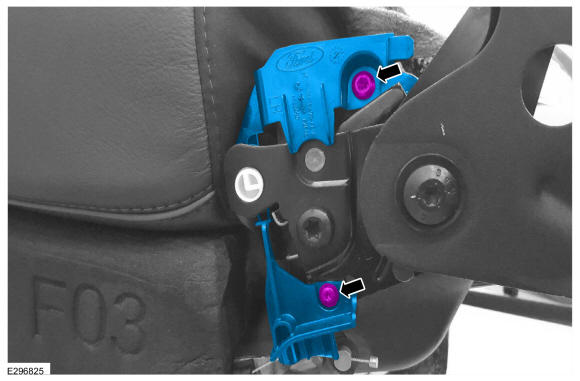

- Remove the screws and the outboard pivot bolt cover.
All vehicles

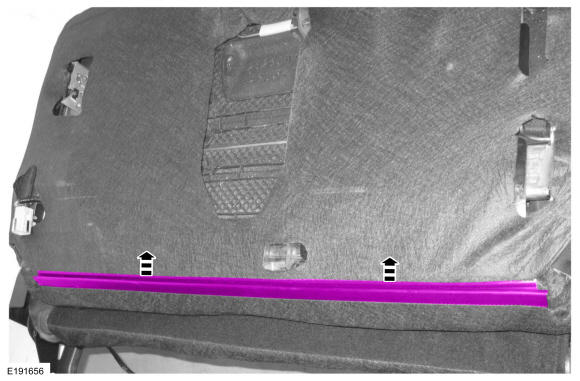

- Release the backrest cover lower J-clip.

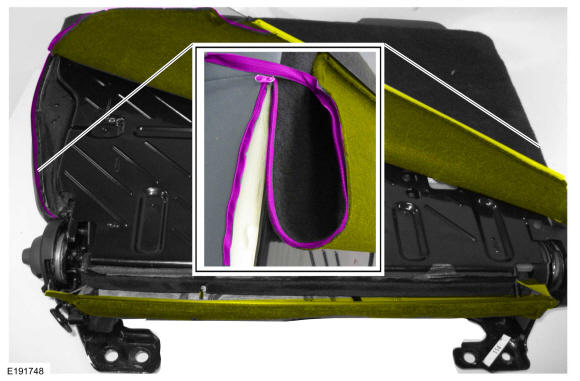

- On both sides, unzip the backrest cover.

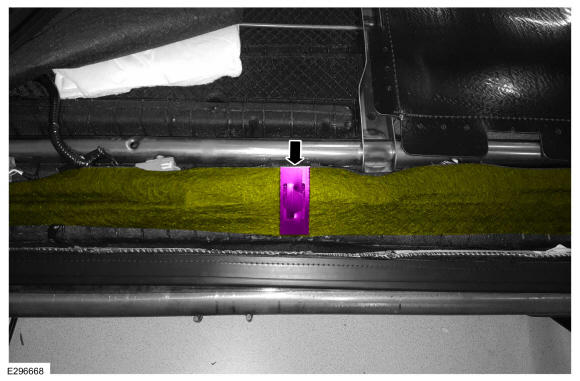

- Release the backrest cover rear strap and position aside.

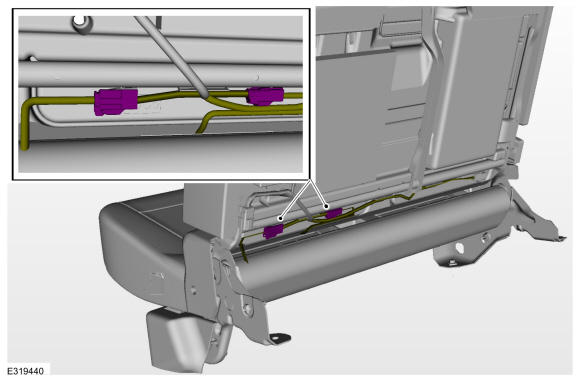

- If equipped. Disconnect the heated seat electrical connectors.

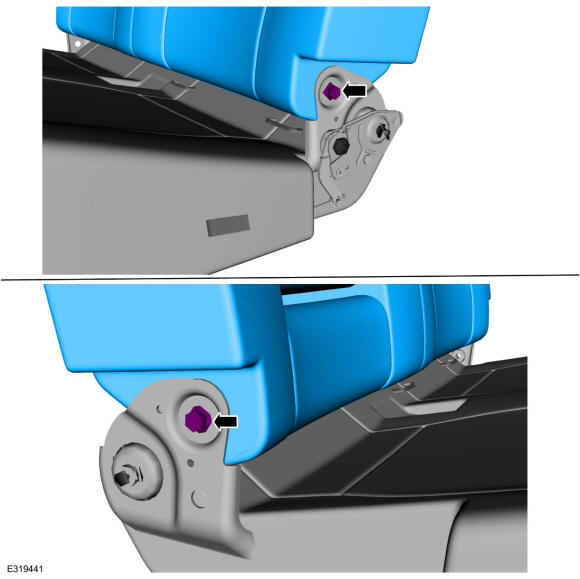

- Remove the inboard and outboard pivot bolts. Remove the backrest.
Torque: 18 lb.ft (25 Nm)
