Rear Seat Armrest - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.

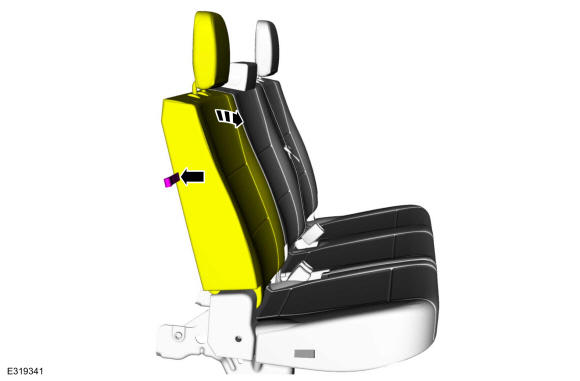

- Pull the backrest release strap and fold the RH seat backrest down.
- Remove the armrest.
- Through the opening in the backrest cover and foam, remove the armrest bolt.
Torque: 18 lb.ft (25 Nm)
- Lift and rotate the armrest to release the guide pins from both sides of the armrest.
- Through the opening in the backrest cover and foam, remove the armrest bolt.
