Heated Rear Seat Module - Crew Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The backrest latch is only accessible when the seat cushion is raised.

NOTE: During installation the striker should be in its lowest position for the latch to engage.

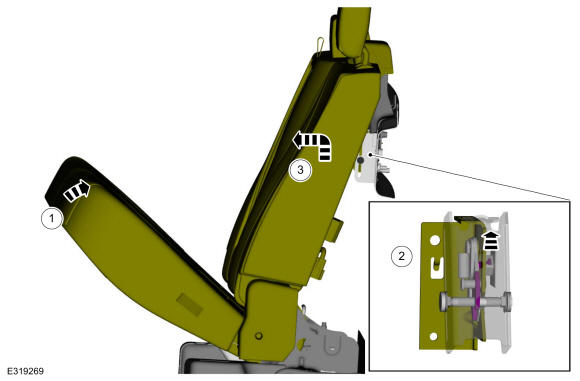

Release and lower the LH seat backrest.
1. Raise the seat cushion.
2. Release the seat backrest latch.
3. Lower the backrest.
Courtesy of FORD MOTOR COMPANY

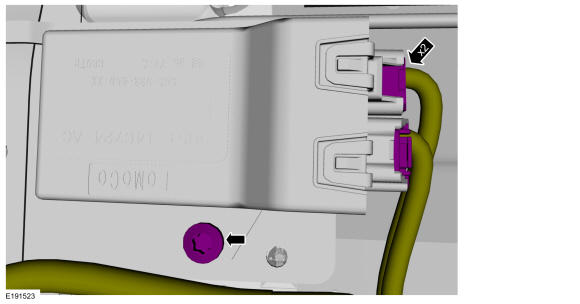

Disconnect the electrical connectors. Remove the module fastener.

Courtesy of FORD MOTOR COMPANY

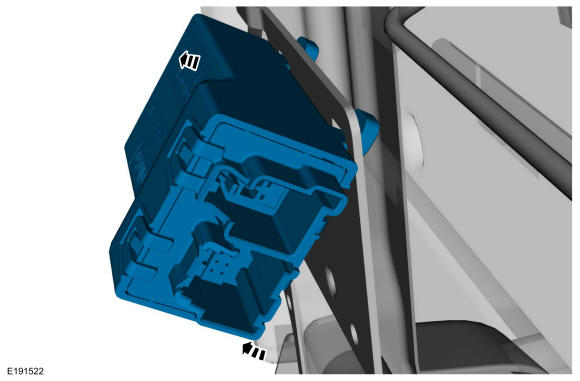

Rotate and remove the heated seat module.
