Tailgate Step: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps may contain installation information.

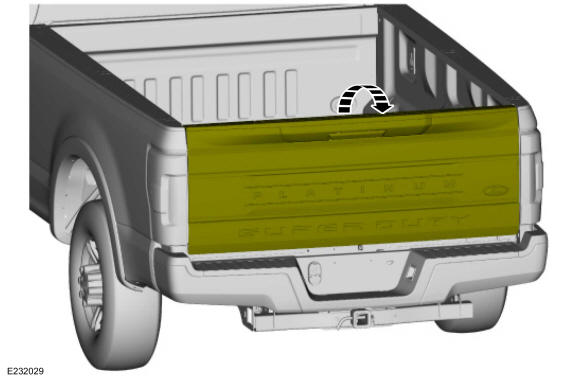

Lower the tailgate.

Courtesy of FORD MOTOR COMPANY
Push the tailgate step release button.

Courtesy of FORD MOTOR COMPANY
Open the tailgate step.

Courtesy of FORD MOTOR COMPANY

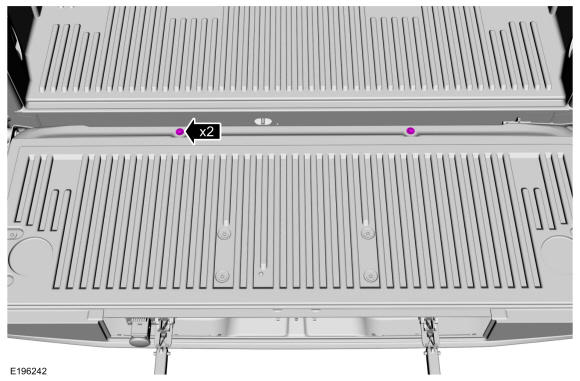

Remove the tailgate step inside bolts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

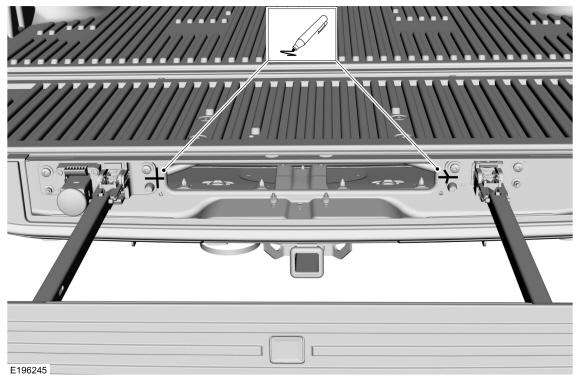

Index mark the tailgate step for alignment during installation.

Courtesy of FORD MOTOR COMPANY

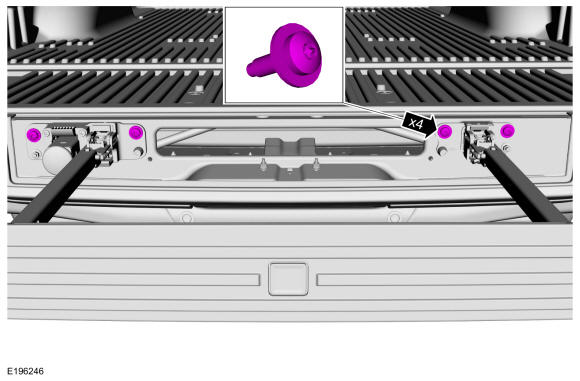

Remove the tailgate step upper bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

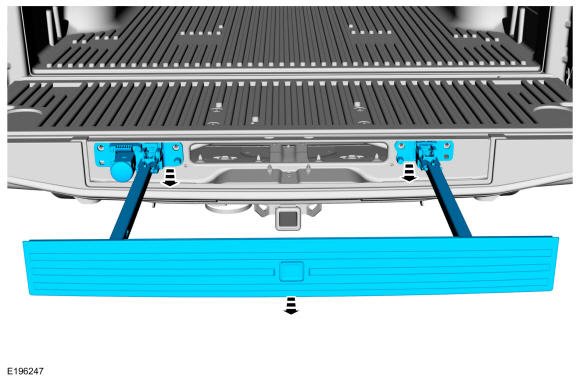

Remove the tailgate step.

Courtesy of FORD MOTOR COMPANY
