Tailgate Damper: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Pay particular attention to the tailgate damper orientation to aid in installation.
- Remove the RH tail lamp assembly. Refer to: Rear Lamp Assembly .
-
NOTE: The lower tailgate damper retainer is accessed from below the vehicle.

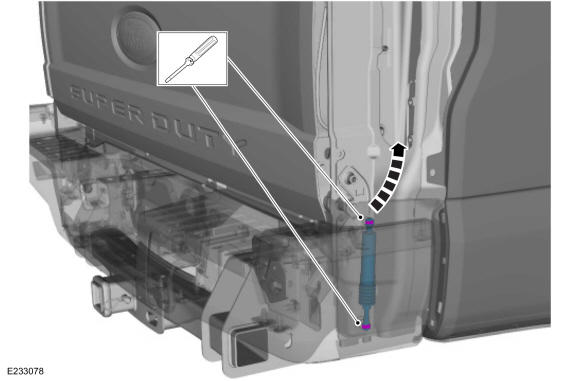

Release the retainer clips and remove the tailgate damper. Use the General Equipment: Flat-Bladed Screwdriver
