Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: LH side shown, RH side similar.

NOTE: Wheels remove for clarity.

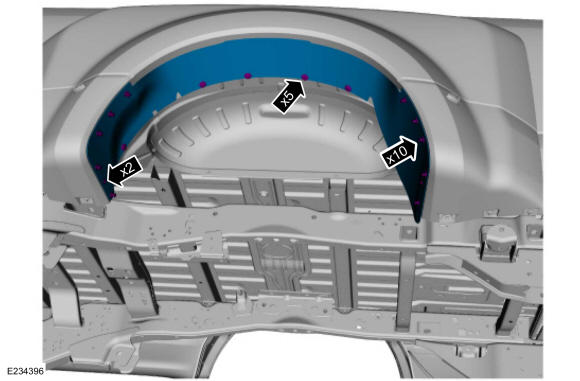

Remove the retainers and fender splash shield.

Courtesy of FORD MOTOR COMPANY

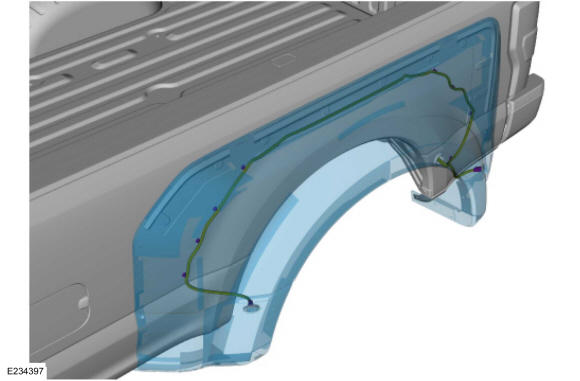

Disconnect the marker light connectors and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY
NOTE: Pay particular attention to fastener locations to aid in installation.

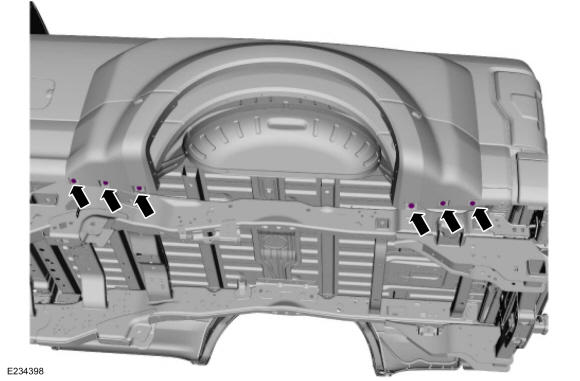

Remove the lower fender fasteners.

Courtesy of FORD MOTOR COMPANY

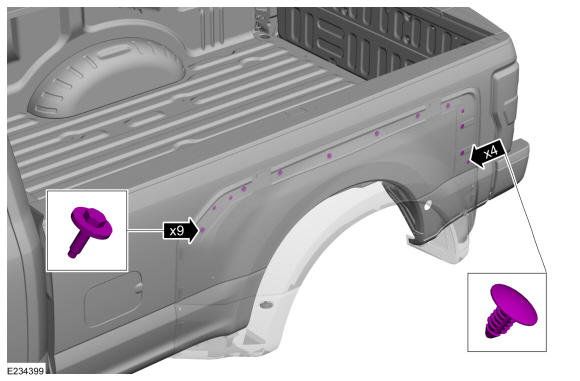

Remove the fender bracket bolts and push pins.

Courtesy of FORD MOTOR COMPANY

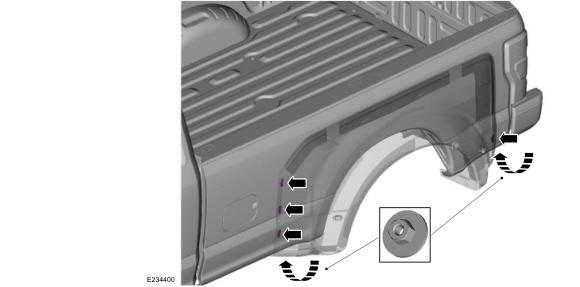

Remove the nuts from the back side of the pickup box panel and remove the retainer clips.

Courtesy of FORD MOTOR COMPANY

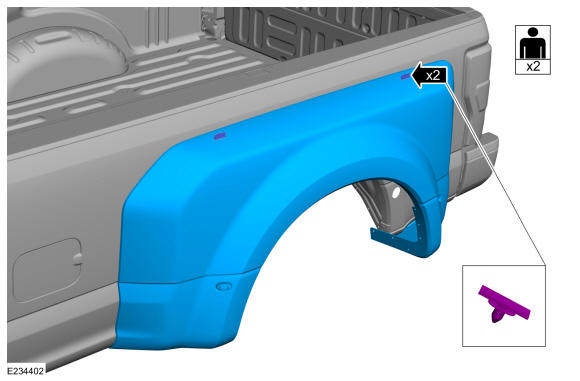

Remove the pushpin retainers and the fender.

Courtesy of FORD MOTOR COMPANY
