Tailgate Step Adjustment

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Adjustment

NOTE: This procedure adjusts the tailgate step and the tailgate latch striker. If the tail gate step operates properly, but the release or latch is in question, proceed to the Latch Striker Adjustment below.
NOTE: TAILGATE STEP ADJUSTMENT
  1. Lower the tailgate.
    GFD410520Courtesy of FORD MOTOR COMPANY
  2. Push the tailgate step release button.
    GFD410521Courtesy of FORD MOTOR COMPANY
  3. Open the tailgate step.
    GFD410522Courtesy of FORD MOTOR COMPANY

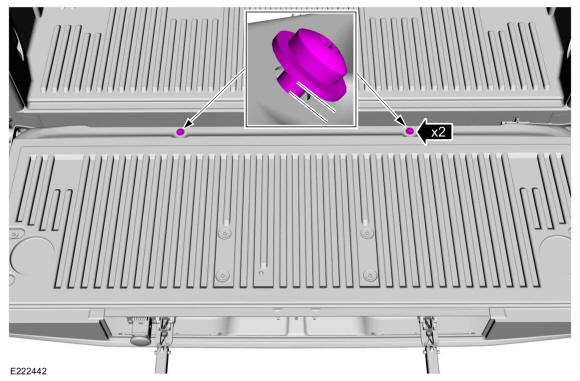

  4. Loosen the tailgate step inside bolts.
    GFD410523Courtesy of FORD MOTOR COMPANY

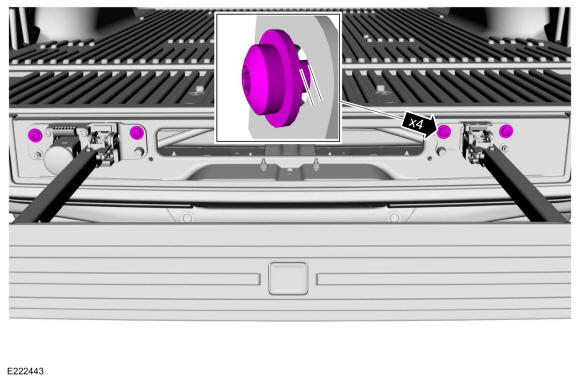

  5. Loosen the tailgate step upper bolts.
    GFD410524Courtesy of FORD MOTOR COMPANY
  6. Cycle the tailgate steps a few times with the step near the closed position.

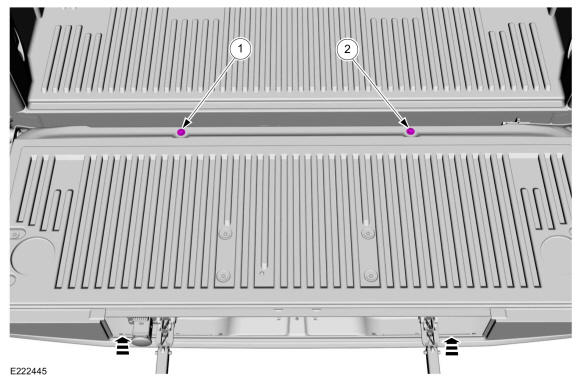

  7. Tighten the tailgate step inside bolts in the following sequence:

    1. Torque: 17 lb.ft (22.5 Nm)
    2. Torque: 17 lb.ft (22.5 Nm)

    GFD410525Courtesy of FORD MOTOR COMPANY

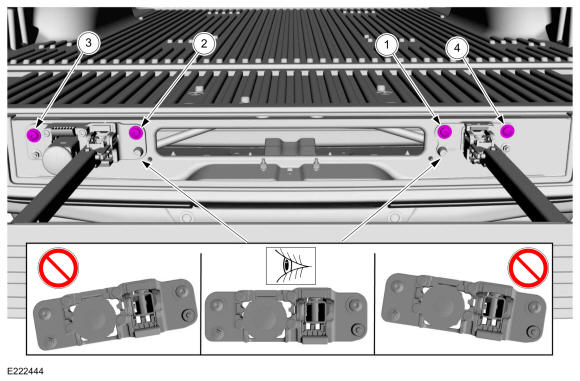

  8. Ensure the step locating pins are fully seated and tighten the tailgate step upper bolts in the following sequence:

    1. Torque: 17 lb.ft (22.5 Nm)
    2. Torque: 17 lb.ft (22.5 Nm)
    3. Torque: 17 lb.ft (22.5 Nm)
    4. Torque: 17 lb.ft (22.5 Nm)

    GFD410526Courtesy of FORD MOTOR COMPANY
  9. Test the system for normal operation.

Adjustment

NOTE: LATCH STRIKER ADJUSTMENT
  1. Lower the tailgate.
    GFD410520Courtesy of FORD MOTOR COMPANY
  2. Push the tailgate step release button.
    GFD410521Courtesy of FORD MOTOR COMPANY
  3. Open the tailgate step.
    GFD410522Courtesy of FORD MOTOR COMPANY

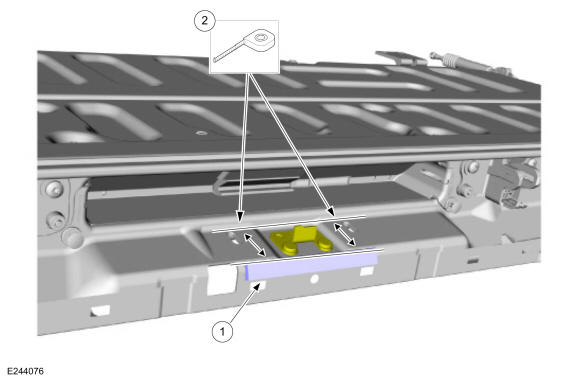

  4. Using a 12 inch straight edge, check the striker horizontal alignment.

    1. Place the straight edge along the edge of the striker.
    2. Measure and record the distance at both ends of the straight edge to a horizontal edge of the tailgate.
    3. Subtract the LH measurement from the RH measurement and record the difference.

    GFD410527Courtesy of FORD MOTOR COMPANY

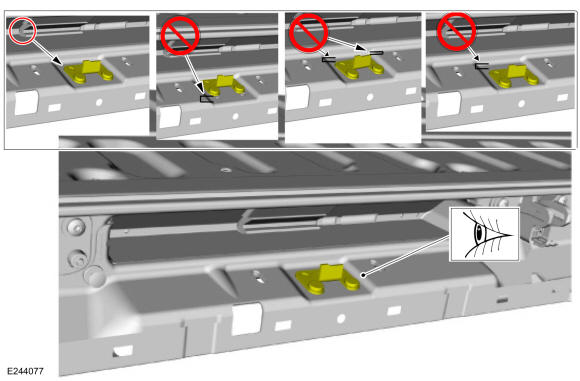

  5. Visually inspect the position of the striker alignment tab in relation to the opening in the body. The striker should set near the center of the body opening.
    GFD410528Courtesy of FORD MOTOR COMPANY
  6. If the striker position is OK, no adjustment is needed. If the horizontal measurement recorded is greater than 10 mm (0.39 in) or the striker is not properly centered in the body opening, adjust the striker.
  7. For access to adjust the striker, remove the tailgate release handle. Refer to: Tailgate Release Handle .

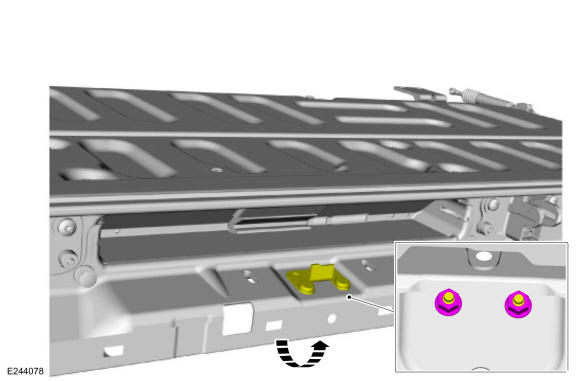

  8. Loosen but do not remove the tailgate step striker nuts.
    GFD410529Courtesy of FORD MOTOR COMPANY

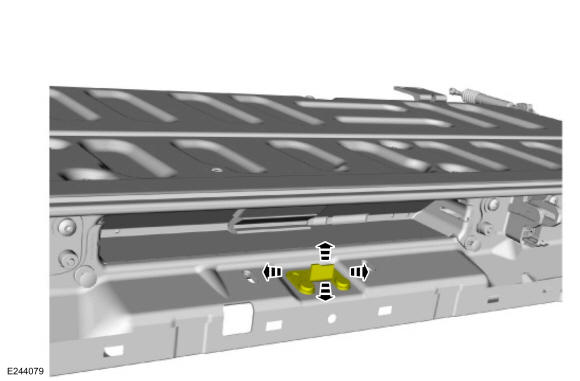

  9. Adjust the tailgate step striker as necessary.
    GFD410530Courtesy of FORD MOTOR COMPANY
  10. Tighten the tailgate step striker nuts.

    Torque: 16 lb.ft (22 Nm)

    GFD410529Courtesy of FORD MOTOR COMPANY
  11. Test the system for normal operation.
  12. Install the tailgate release handle. Refer to: Tailgate Release Handle .
