Rear Door Check Arm - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
- Open the rear door.
- Remove the check arm bolt.
Torque: 17 lb.ft (22.5 Nm)
- Remove the rear door trim panel. Refer to: Rear Door Trim Panel - Crew Cab .
-

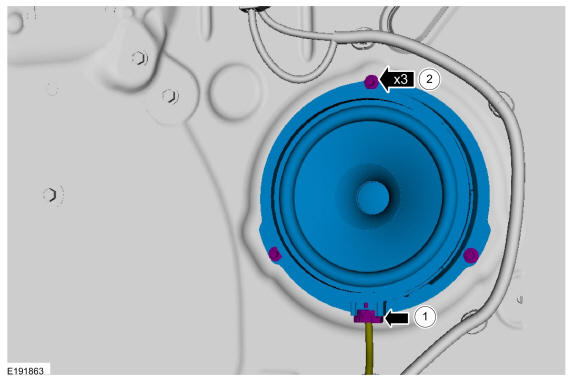

- Disconnect the electrical connector.
- Remove the bolts and the speaker.
- Remove the nuts.
Torque: 80 lb.in (9 Nm)

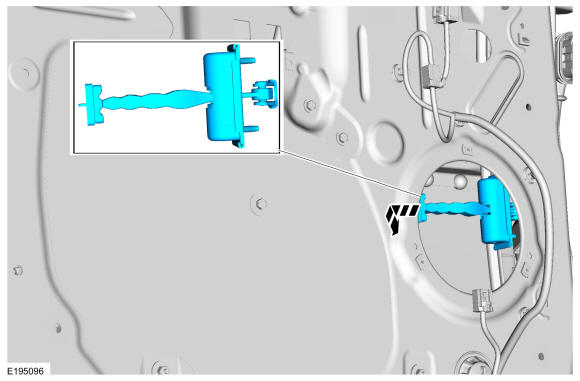

- Remove the check arm assembly.
