Rear Door - SuperCab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The rear door should only be removed and installed to the vehicle at 90 deg. door open position. Detaching and reattaching the rear door at full open (170 deg.) could possibly release an internal spring in the hinge mechanism and therefore disable the hinge function completely.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

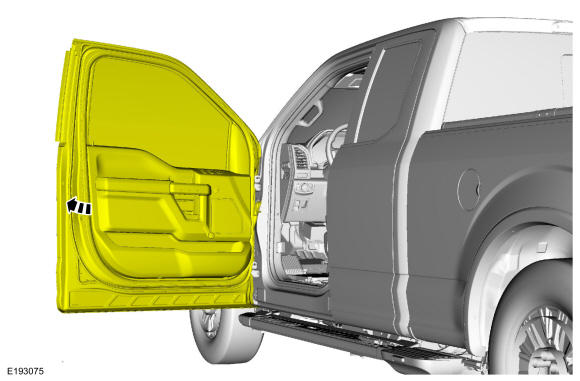

Open the front door.

Courtesy of FORD MOTOR COMPANY

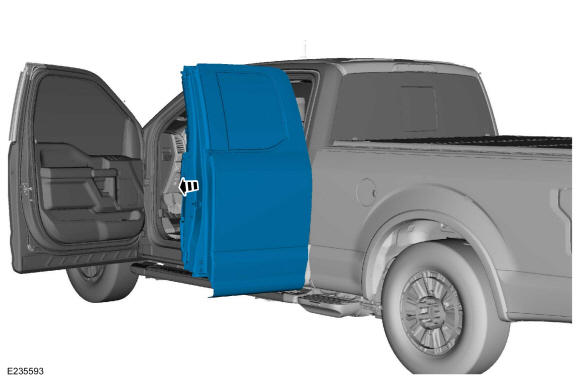

Open the rear door.

Courtesy of FORD MOTOR COMPANY

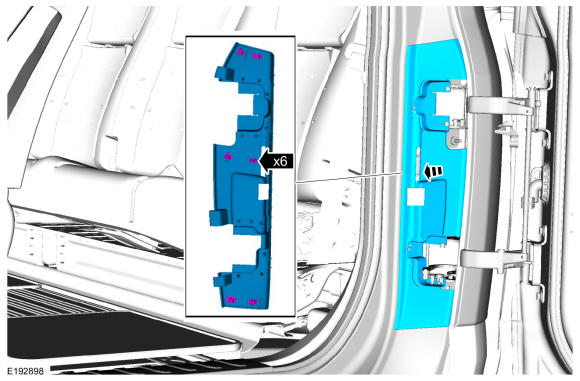

Remove the rear body access trim panel.

Courtesy of FORD MOTOR COMPANY
Disconnect the rear door electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolts.. Use the General Equipment: Door Lift
Torque: 20 lb.ft (27.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the door.. Use the General Equipment: Door Lift

Courtesy of FORD MOTOR COMPANY
