Rear Door - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
- Open the rear door.
- Remove the check arm bolt.
Torque: 17 lb.ft (22.5 Nm)
- Disconnect the rear door electrical connector.

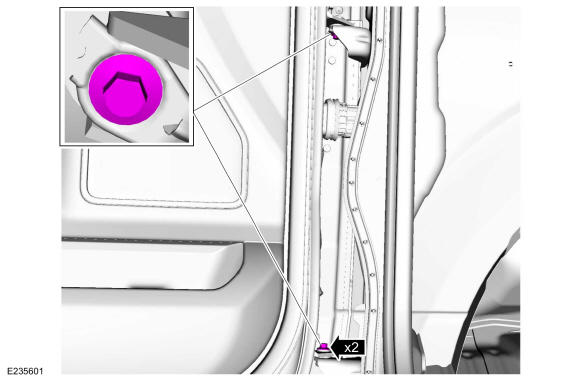

- Remove the door hinge pivot bolts.. Use the General Equipment: Door Lift
Torque: 22 lb.ft (30 Nm)

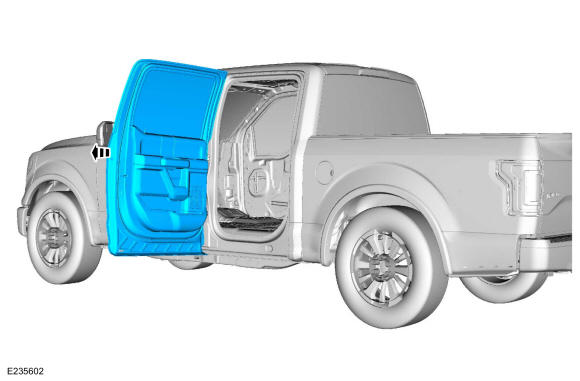

- Remove the door.. Use the General Equipment: Door Lift
