Fuel Filler Door: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

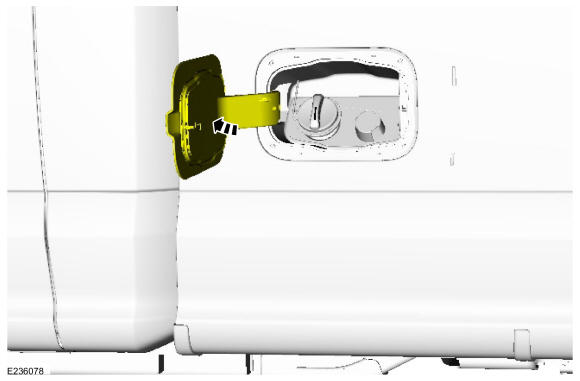

  1. Open the fuel filler door.
    GFD410504Courtesy of FORD MOTOR COMPANY

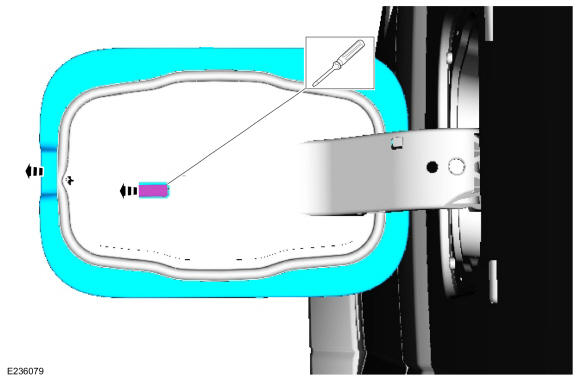

  2. Pry the retaining tab back and slide the fuel filler door from the fuel filler door hinge.. Use the General Equipment: Flat Headed Screw Driver
GFD410505Courtesy of FORD MOTOR COMPANY
