Fuel Filler Door Assembly: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The fuel filler door assembly is damaged during the removal process and requires a new fuel filler door assembly to be installed.

NOTE: Vehicle with diesel fuel conditioner shown, vehicles without similar.

Remove the fuel filler door. Refer to: Fuel Filler Door .

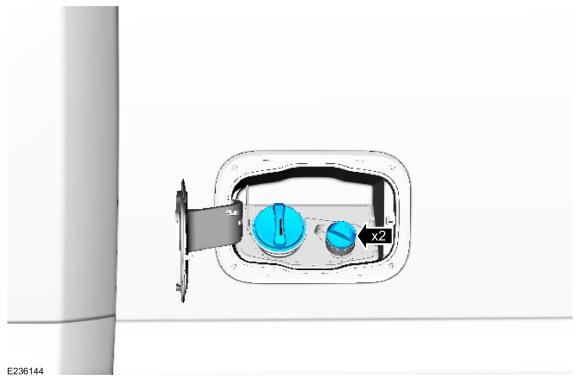

Remove the caps.

Courtesy of FORD MOTOR COMPANY

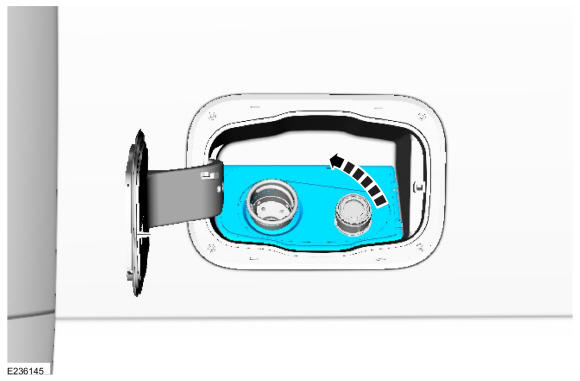

Remove the fuel filler door opening shield.

Courtesy of FORD MOTOR COMPANY

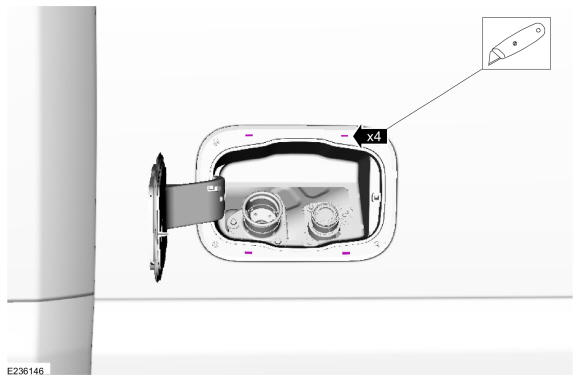

Slice the holes in the indicated areas.. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY
NOTE: Clearance is limited. When all four clips release, the housing can be rotated.

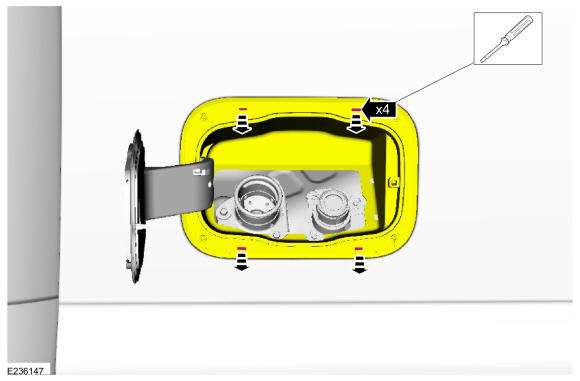

Release the clips while pulling the fuel filler door housing away from the vehicle.. Use the General Equipment: Flat-Bladed Screwdriver

Courtesy of FORD MOTOR COMPANY

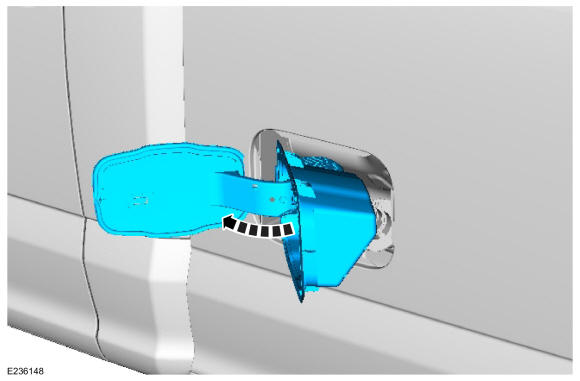

Pull the fuel filler door assembly away from the vehicle and remove.

Courtesy of FORD MOTOR COMPANY
