Rear Door Alignment - SuperCab

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Inspection

NOTE: LH shown, RH similar.

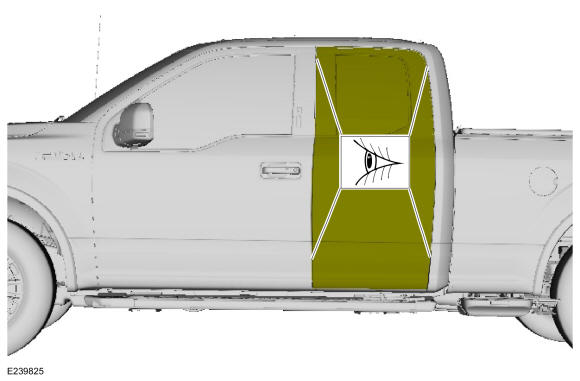

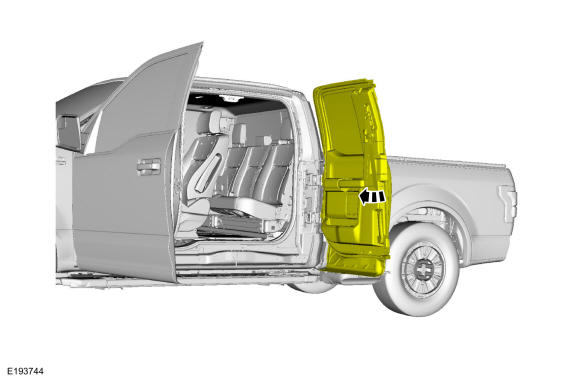

Inspect the rear door-to-body dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

Adjustment

All alignments

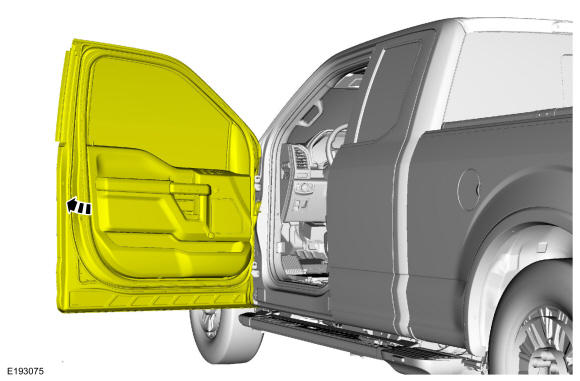

Open the front door.

Courtesy of FORD MOTOR COMPANY
Open the rear door.

Courtesy of FORD MOTOR COMPANY
Remove the upper striker assembly trim panel cover.

Courtesy of FORD MOTOR COMPANY

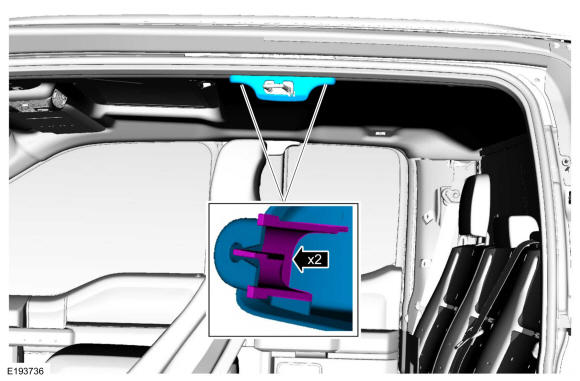

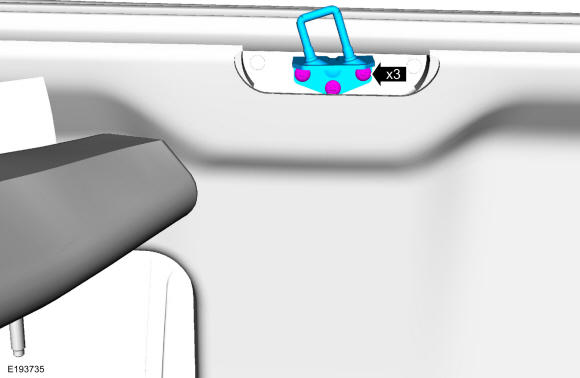

Remove the bolts and the upper striker assembly.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

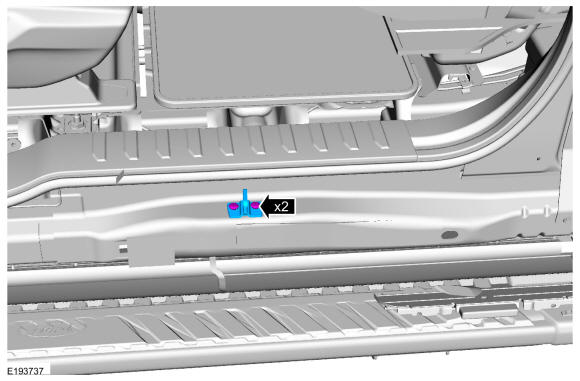

Remove the bolts and the lower striker assembly.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment
Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - Super Cab .

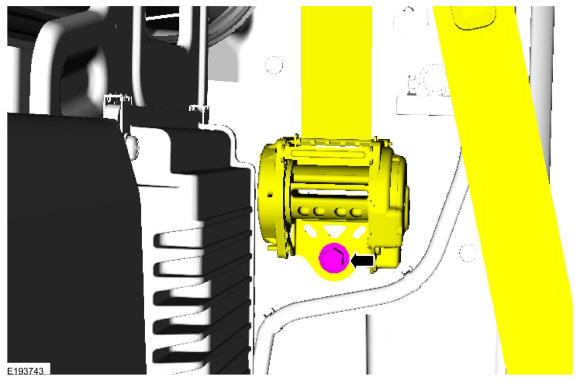

Remove the bolt and position aside the safety belt retractor.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

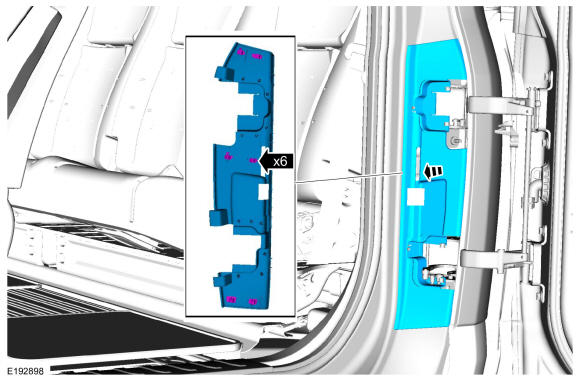

Remove the rear body access trim panel.

Courtesy of FORD MOTOR COMPANY

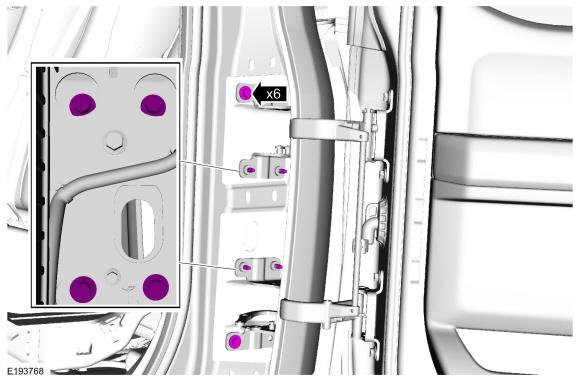

Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY
Carefully close the rear door.

Courtesy of FORD MOTOR COMPANY

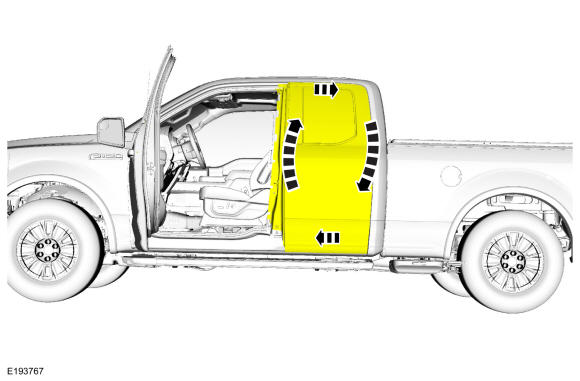

Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Carefully open the rear door.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments
Close the rear door.

Courtesy of FORD MOTOR COMPANY

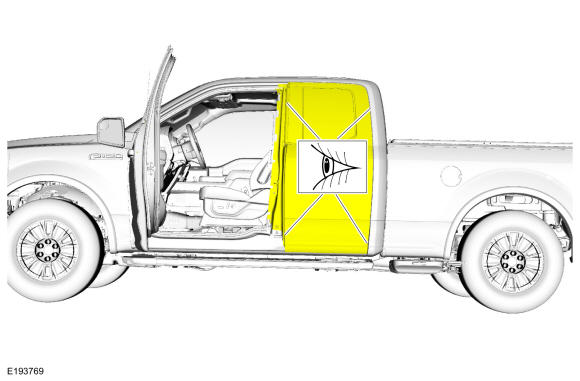

Inspect the body-to-rear door dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Install the removed components.
1. During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
